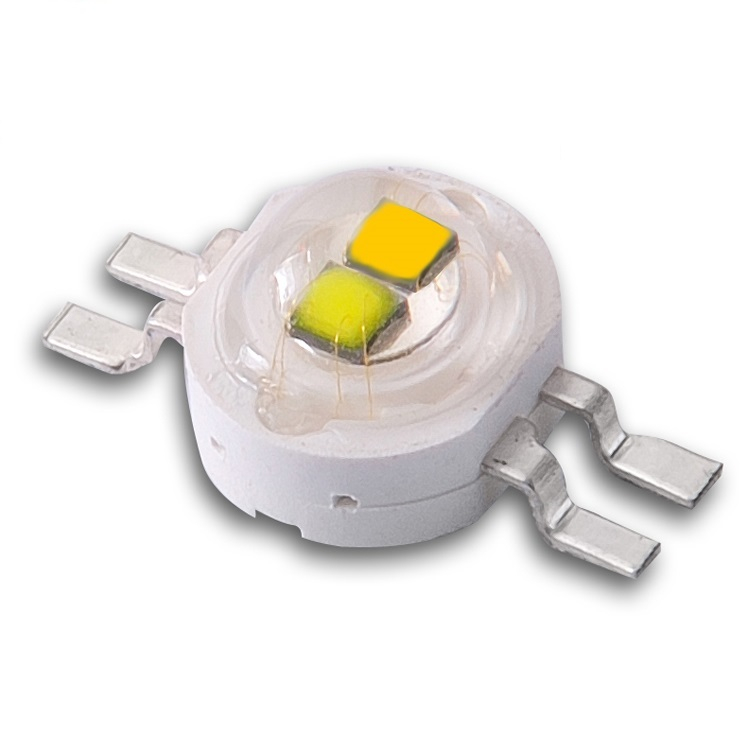

Make High Power 2w White Warm White Led Chip

Product Feature:

★Adopt well-known vender’s chip package

★99.99% gold wire welding and good heat sink

★Good bright spots and High bright

Product Use:

★Stage Light,Decorative Light

★Soft-light lamp, Photography lamp, Beauty lamp

★Fountain Light,Aquarium Light,etc

Remarks:

★This kind led is high power white+warm white ,2in1 led

★Use 3V each color and 350mA current each color

★The color CCT can be customized, white is 4000-15000K, warm white is 2000-4000K,based on your demands

★Can make high CRI 95Ra for this kind led, also can make normal CRI70/80,based on your demands

★The 4 pins copper frame make sure the led have good heat sink ability,but you also need use the good cooling method to make the better good heat sink

★Use the double gold wires to weld the led chip, make sure the led have good heat sink ability

★The led lumen is high,please don't look straight

★Please wear anti-static ring always when take the led and please don't press the led top lens

★The reflow soldering temperature is 260℃/3s,please don't above it

★ISO 9001 approved
