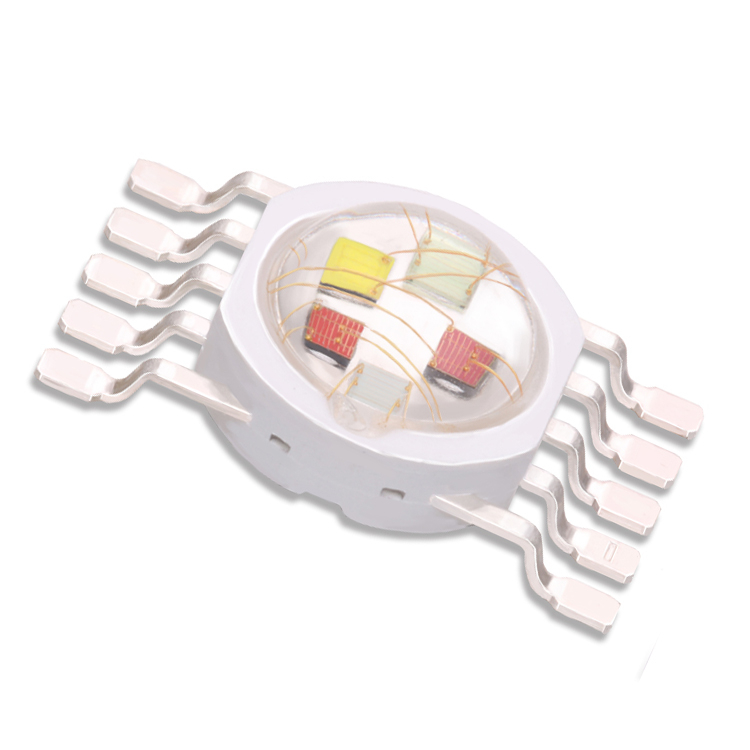

10pins High Power 10W RGBWY 5in1 Led Chip

Product Feature:

★Adopt well-known vender’s chip package

★99.99% gold wire welding,cooper frame

★Good bright spots and High bright

Product Use:

★Stage Light,Decorative Light

★Fountain Light,Aquarium Light,etc

Remarks:

★This kind led have 5 colors,5in1 led,the colors can make as your demands

★Normal is RGBYW, 5 colors in a led,can custom the led chip place

★When the led working,will have high heat, please make good heat sink

★We use copper frame and gold wires to pack the led,you still need use the good heat sink

★Make sure led pcb temperature is about 40~60℃,if it is very high, please use cool fan

★Suggest use 500mA for each color, if need use 700mA, the heat sink will need better

★We call this kind is 10W RGBWY led,as 500mA each color, then will be 2W each color

★When use reflow soldering,please use MAX 260℃/3s

★About the package, use tube packing,45pcs/tube;if use reel packing,will be 700pcs/reel

★CE ROHS approved
