High Power 1w 3w Red Led

Product Feature:

★99.99% gold wire welding

★Adopt well-known brand chip

★High brightness and good heat sink

Product Use:

★Car Light,Flash Light,Aquarium Light

★Street Light,Decorative Light,etc

Remarks:

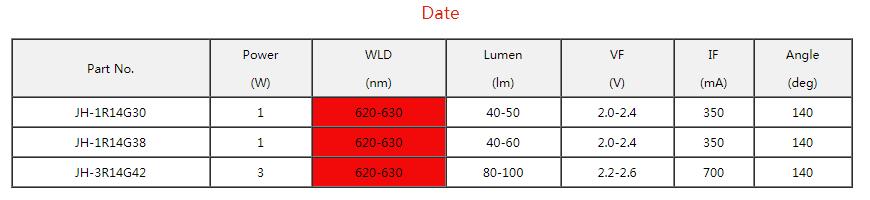

★These 3 kinds are high power red color led,wavelength is 620-630nm

★For 1w red,voltage is 2.0-2.4V,current is 350mA,please don't above the limit value

★For 3w red,voltage is 2.2-2.6V,current is 700mA,please don't above the limit value

★The Chip brands usually is Epileds chip from Taiwan,also can make Sanan or Epistar red,if you need ,please ask at first

★The led normal light angle 140deg,also can make 60deg and 90deg,but need custom

★When received the led,please check the led at first,if the package is normal,please use them in suitable time;if the package leaked,then need make dehumidification,please bake the led at 60℃/12hours

★When soldering the led onto the pcb, 260℃/3s max for the reflow soldering;360℃/3s for the heating platform;max times is 2 times

★RoHS and CE approved

★ISO approved

★Custom wavelength,600-620nm,640-680nm
