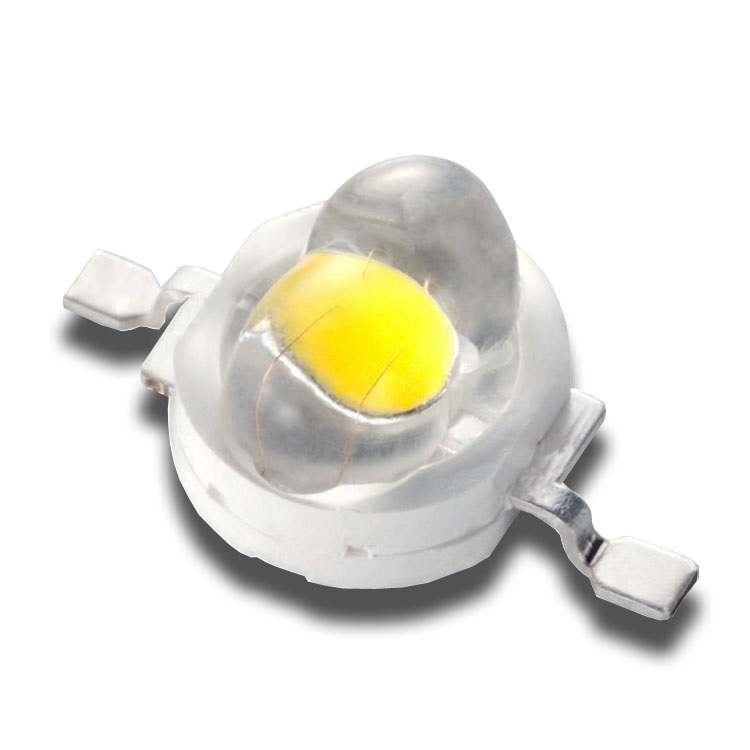

JH-1W12P35-T4A-M2
LEDGUHON
| Quantity: | |
|---|---|
Product Feature:
★High lumen and good heat sink
★Adopt well-known vender’s chip package
★99.99% gold wire welding
Product Use:
★Car Light,Road Light,Decorative Light
★Street Light,Background Light,etc
Remarks:
★Personalized design,have 2 light angle,wide 140deg and narrow 80deg
★Peanut design can be used for the Street Light
★High power 1w and 3w white or warm white,CCT can be customized,from 2000-15000K
★White led voltage,normal is 3V, current 1w use 350mA,3w use 700mA
★Chip brands are Bridgelux or Epileds,if need other brand,please ask at first
★Light effect can reach 120lm/W
★CE and RoHS approved
★ISO 9001 approved
★Copper frame and gold wire lines,the led will have good heat sink ability
★Please don't press the led lens top,as it will damage the gold wire lines,then led can't work normally
★After received the leds,please use them asap;if the package leaked,please do dehumidification,bake them at 60℃/12hours
