JH-3IR14G42-T3A-M940
LEDGUHON
| Quantity: | |
|---|---|
Product Feature:
★Adopt well-known brand chip package
★99.99% gold wire welding
★High light power and good heat sink
Product Use:
★Monitoring, Infrared equipment,etc
Remarks:

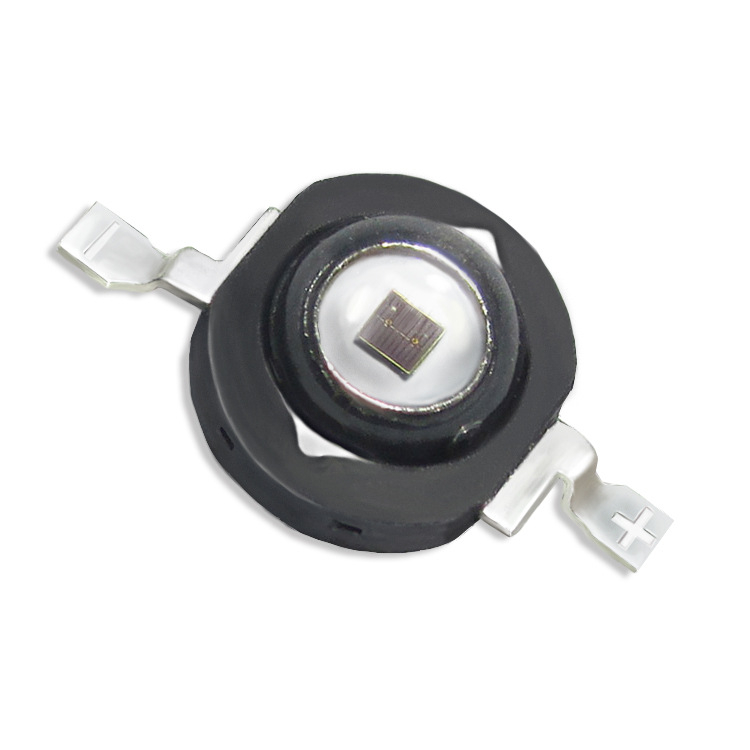

★This IR led is 940nm high power led
★Use copper frame and gold wires weld,make sure good heat sink ability
★We make led since 2009 year,all kinds led can custom,please tell me your demands
★Wavelength range is 5nm,so 940nm can make 940-945nm and 935-940nm,based on your demands

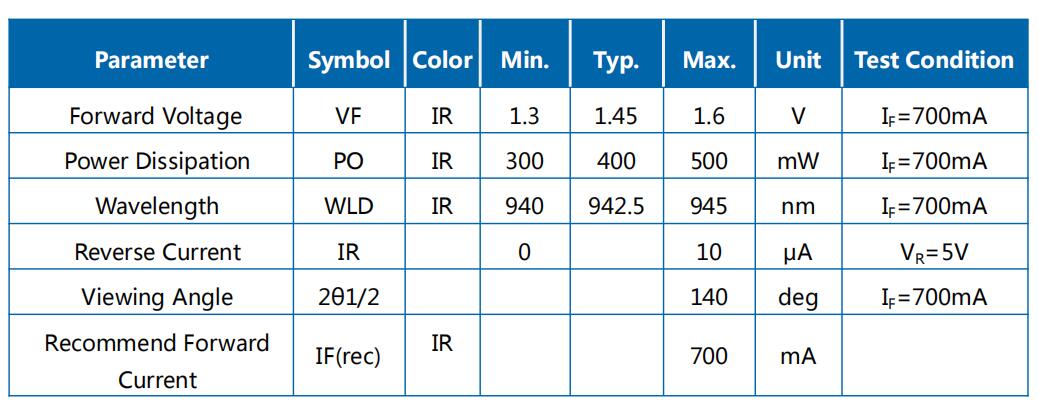

★940nm IR chip voltage is 1.3-1.6V,please note,it is lower than 740nm chip
★700mA current call the chip is 3W;350mA current call the chip is 1W
★When soldering the led onto the pcb,please control the temperature;reflow soldering 260℃/3s;hand soldering 360℃/3s
★Please wear anti-static ring when take the led
★60deg,140deg and 90deg can choose,please tell us your demands
★ISO CE and ROHS approved
Product Feature:
★Adopt well-known brand chip package
★99.99% gold wire welding
★High light power and good heat sink
Product Use:
★Monitoring, Infrared equipment,etc
Remarks:
★This IR led is 940nm high power led
★Use copper frame and gold wires weld,make sure good heat sink ability
★We make led since 2009 year,all kinds led can custom,please tell me your demands
★Wavelength range is 5nm,so 940nm can make 940-945nm and 935-940nm,based on your demands
★940nm IR chip voltage is 1.3-1.6V,please note,it is lower than 740nm chip
★700mA current call the chip is 3W;350mA current call the chip is 1W
★When soldering the led onto the pcb,please control the temperature;reflow soldering 260℃/3s;hand soldering 360℃/3s
★Please wear anti-static ring when take the led
★60deg,140deg and 90deg can choose,please tell us your demands
★ISO CE and ROHS approved
