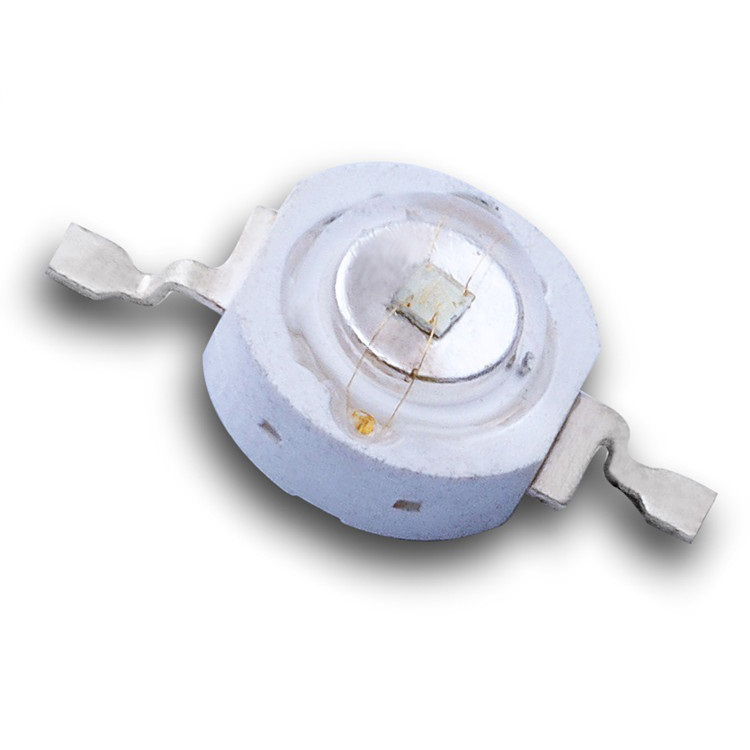

JH-3B14G45-T2A-M
LEDGUHON
| Quantity: | |
|---|---|
Product Feature:
★good heat sink
★Adopt well-known brand’s chip make
★99.99% gold wire lines welding
Product Use:
★Curing Light,Money Detector Light
★Medical Light,Decorative Light,Aquarium Light,etc
Remarks:

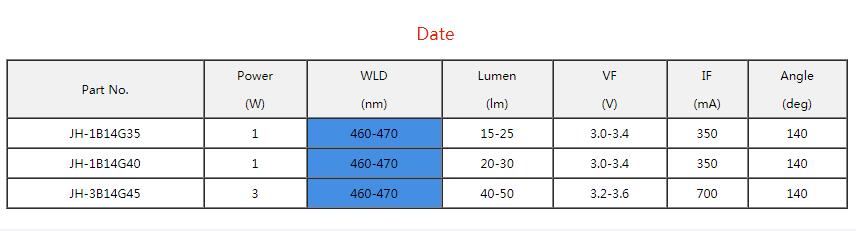

★High power blue color led,normal wavelength is 460-465nm
★Also can make 440-450nm and 465-480nm,price is different
★For 1W blue led chip,normal voltage is 3.0-3.4V,current is 350mA;for 3W blue led chip,normal voltage is 3.0-3.6V,current is 700mA
★Light angle,normal is 140deg,also can make 60deg and 90deg,price is higher
★When soldering the led on the pcb,reflow soldering 260℃/3s max;if by heating platform,360℃/3s max
★Please use good heat sink make sure the led work normally
★Suggest pcb temperature is about 40~60℃,and the led need work in dry environment;too high working temperature and humidity will affect the service life of led
★CE approved
★RoHS approved
★ISO 9001 approved
