JH-3Y14G42-T2A-M
LEDGUHON
| Quantity: | |
|---|---|
Product Feature:
★Adopt well-known vender’s chip package
★99.99% gold wire welding
★Good heat sink and good light effect
Product Use:
★Car Light,Flash Light,Decorative Light
★Street Light,Aquarium Light,etc
Remarks:

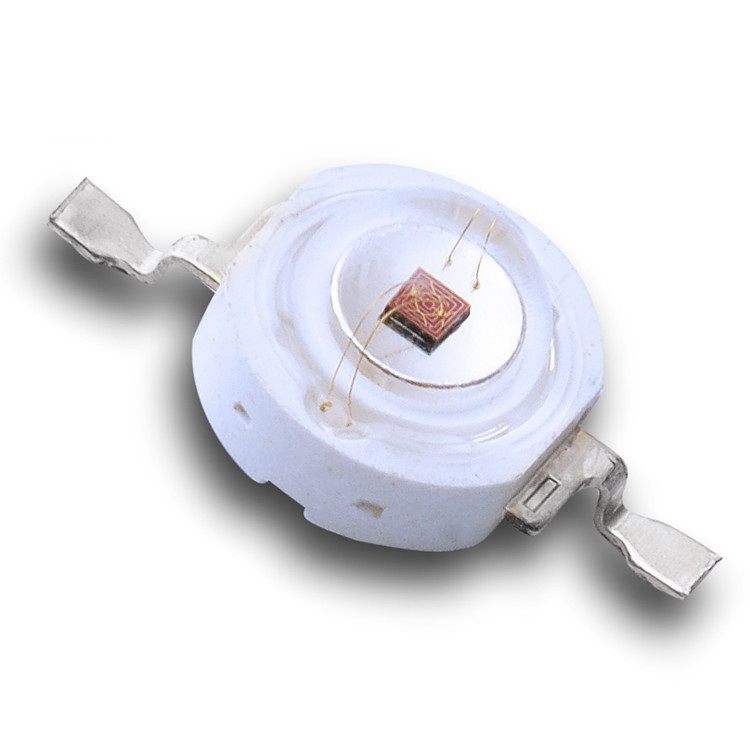

★High power yellow led,use 2pins cooper frame to make
★Double gold wire lines,make sure led have good heat sink ability

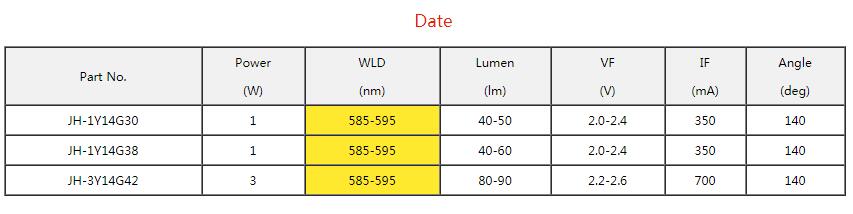

★Watts can be 1W and 3W
★Yellow chip voltage is about 2V, we call the led chip power based on the current;when use 350mA,call it as 1W;when use 700mA,call it as 3W
★The wavelength is 585-595nm,can call yellow color as amber color
★The normal light angle is 140deg,can custom 60deg and 90deg
★Please use good heat sink for the led
★Make sure led working in dry environment
★When soldering the led on to the pcb,if use reflow soldering,will send Moding type to you;if don't need,then send normal high temperature protective lens type
★Reflow soldering,suggest use 260℃/3seconds max
★RoHS and CE approved
