JH-3W14P45-T4A-M
LEDGUHON
| Quantity: | |
|---|---|
Product Feature:
★Adopt well-known vender’s chip package
★99.99% gold wire welding
★Ceramic substrates,good heat sink
Product Use:
★Car Light,Flash Light,Decorative Light
★Street Light,Aquarium Light,etc
Remarks:

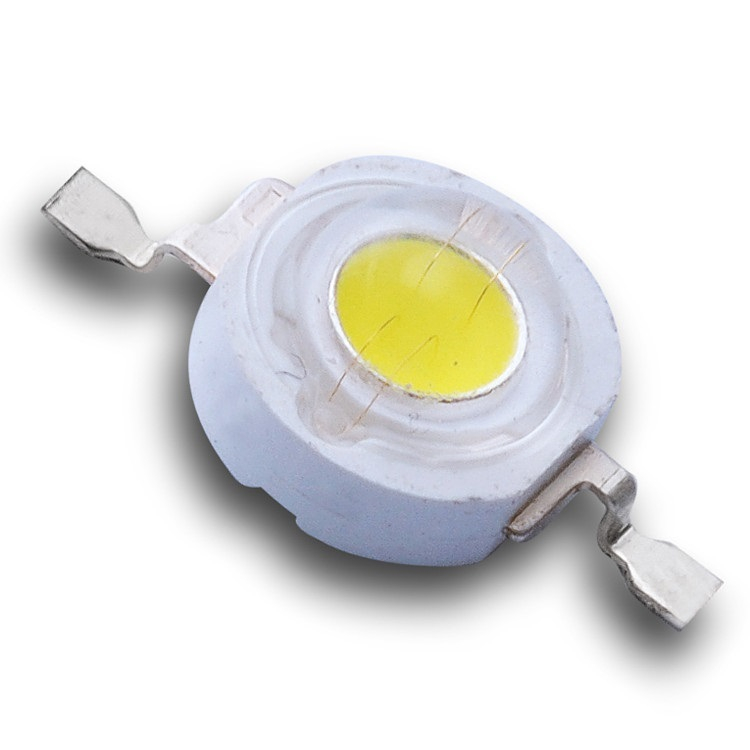

★This kind high power led is white led,usually make 1w or 3w, if want 5w,also can make
★Normal CRI is 70Ra, can custom 80Ra,90Ra or 95Ra,based on your demands
★CCT 2000-15000K,for warm white,200K a range;for white,500K a range
★Voltage can be 2.8-3.6V
★Current, 1W 350mA;3W 700mA
★If make 5W,voltage can be 3.2-3.6V or 6.0-6.8V;Current is 1400mA or 700mA
★Light effect can reach 130lm/W
★The light angle normal is 140deg,if want 60deg and 90deg,please ask us
★Chip brand,use Epistar,Epileds,Sanan,Bridgelux and so on
★CE and RoHS approved
★ISO 9001 approved
★Reel packing 1000pcs/reel;Tube packing 1000pcs/bag
★Please check the led after receive at once,if package is OK, use normally;if package leaked, please bake at 60℃/12hours
