JH-3IR6G42-T3A-M850
LEDGUHON
| Quantity: | |
|---|---|
Product Feature:
★Adopt well-known vender’s chip package
★99.99% gold wire welding
★Good bright spots and High bright
Product Use:
★Monitoring, Infrared equipment,etc
Remarks:

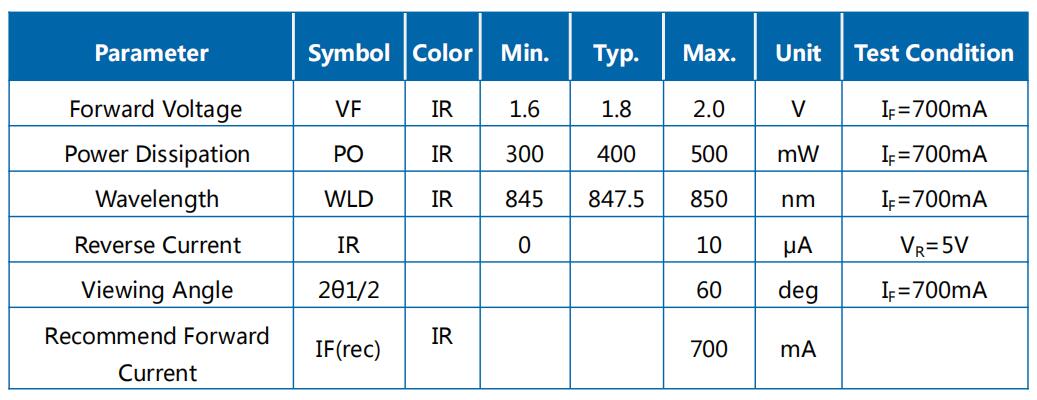

★This kind 3W high power IR led,wavelegth is 850nm,5 nm as a range, so can be 845-850nm or 850-855nm;based on your demands
★The voltage is 1.6-2.0V and the current is 700mA;sometimes can use 1000mA peak current,but please use very good heat sink
★When soldering the led onto the pcb,if by reflow soldering, please use 260℃/3s MAX
★The light angle is 60deg, also can make 140deg;if need 90deg,please ask at first
★Will pack 800pcs/reel
★The light power is 300-500mW test at 700mA;if test 350mA will be about 200mA;if 1000mA will be about 600mW
★850nm IR led chip is different from another wavelength, you can see some red color from the chip when the led lighting,it is normal
★CE ROHS approved
