JH-3IR6G42-T3A-M940
LEDGUHON
| Quantity: | |
|---|---|
Product Feature:
★Adopt well-known brand chip package
★99.99% gold wire lines welding
★Copper frame and good sink
Product Use:
★Monitoring, Infrared equipment,etc
Remarks:

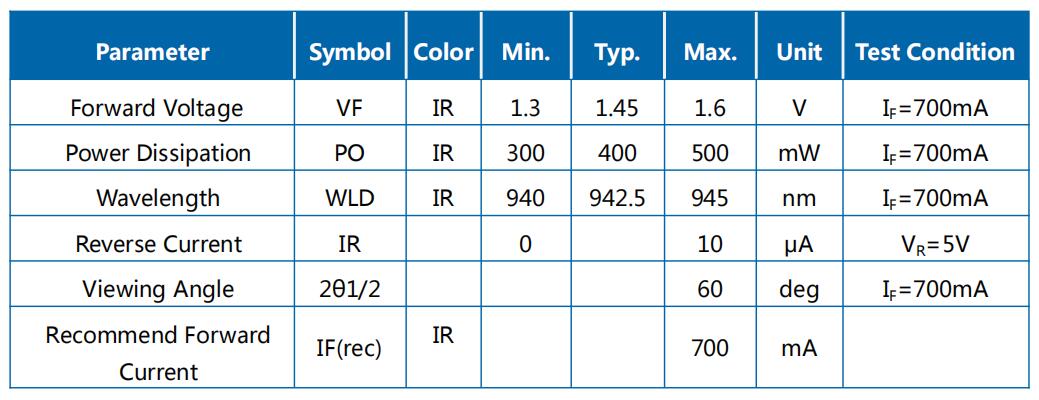

★This kind is 3W high power IR led,the current is 700mA, voltage is 1.3-1.6V
★The led watts based on the led chip current, if use 700mA, call it is 3W
★This kind IR wavelength is 940nm,usually have a range 5nm,so it is 940-945nm;and sometimes can be 935-940nm
★The Light Power is 300-500mW test at 700mA
★The light angle is 60deg, if need make 140deg and 90deg,please ask at first
★IR led chip, the light usually very low, 940nm just see a little red color from the chip,it is normal
★If need can't see any red color from the chip,then need use another chip to make,price is higher than this normal kind
★Usually 800pcs/reel,plaese make sure the packing bag is well after received the package;if not,please bake at 60℃/12hours to make dehumidification
★If you need the current is above 3V,also can make,price is higher than this kind normal kind
★ROHS and CE approved
