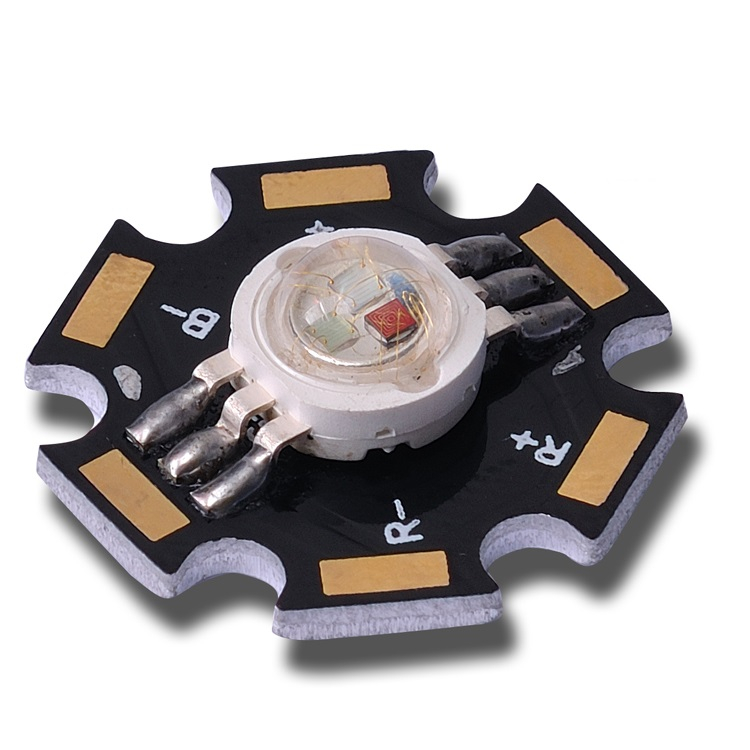

6pins High Power 1.5W 3W 9W RGB Led With PCB

Product Feature:

★99.99% gold wire welding

★Well-known brand chip package

★Good bright spots and High bright

Product Use:

★Stage Light,Aquarium Light

★Fountain Light,Decorative Light,etc

Remarks:

★High power RGB led series

★Can make 1.5W ,3W and 9W RGB led

★1.5W RGB led,each chip use 150mA;3W RGB led,each chip use 350mA;9W RGB led, each chip use 700mA

★Can custom the 3 chips layout in the led,make 3 kinds, RGB,RBG and GRB

★Normal kind light angle is 140deg,if need other agnle,please tell use at first

★Use 6pins frame to make,we solder the 20mm star base pcb,which us gold-plated,have good heat sink ability

★Use copper frame and gold wire lines,the led will have good heat sink ability

★As have the PCB,you need add the thermal conductive silicone on the pcb bottom

★When weld the led and the wires by hand,please take care,suggest use Los iron welding,and need connect them in short time,3 seconds each time,3 times max

★CE or RoHs approved

★ISO 9001 approved

★Accept custom

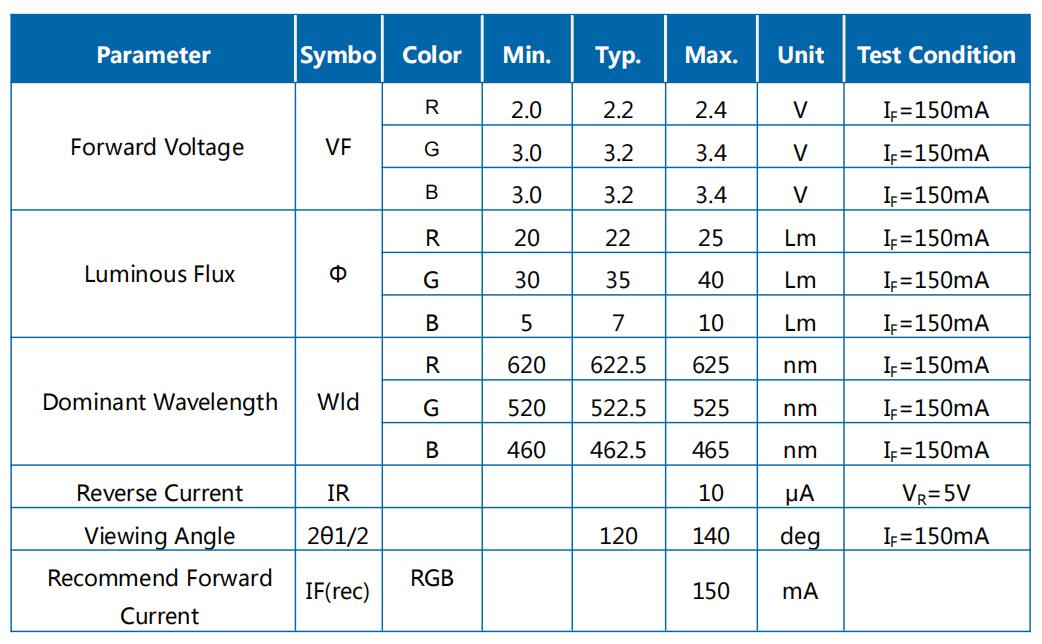

1.5W RGB LED DATA

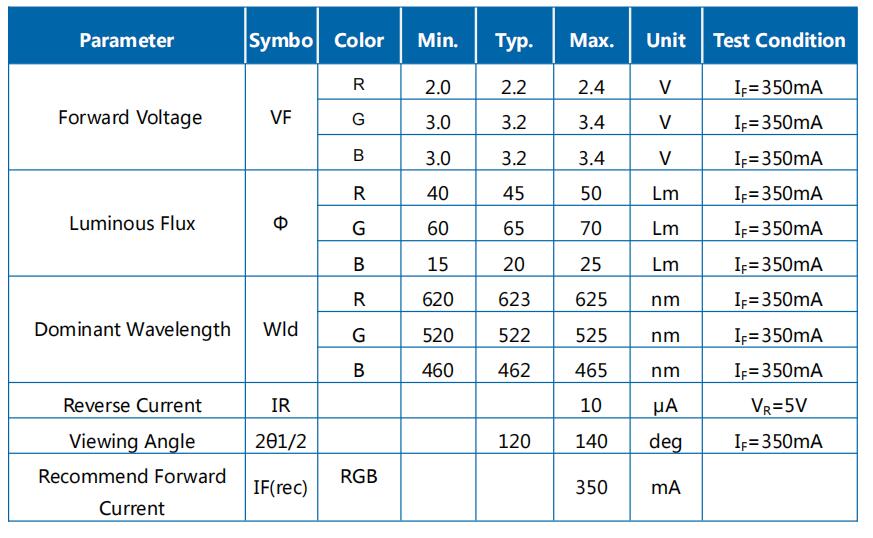

3W RGB LED DATA

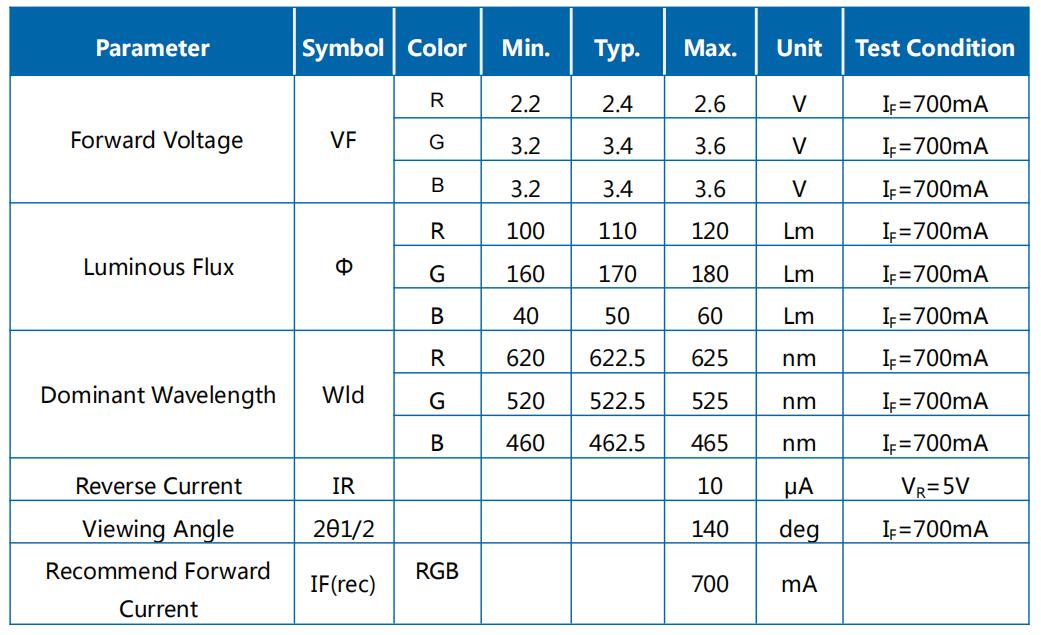

9W RGB LED DATA
