JH-3V14G45-T2A-M
LEDGUHON
| Quantity: | |
|---|---|
Product Feature:
★Adopt well-known vender’s chip package
★99.99% gold wire welding
★Copper frame good heat sink
Product Use:
★Curing Light,Money Detector Light,Medical Light
★Decorative Light,Aquarium Light,etc
Remarks:
★UV led,can make 1W-3W-5W,use this T2A frame to make
★About the wavelength,395-425nm,and 5nm as the range
★Normal make 395-405nm,other kinds based on the customer's demands

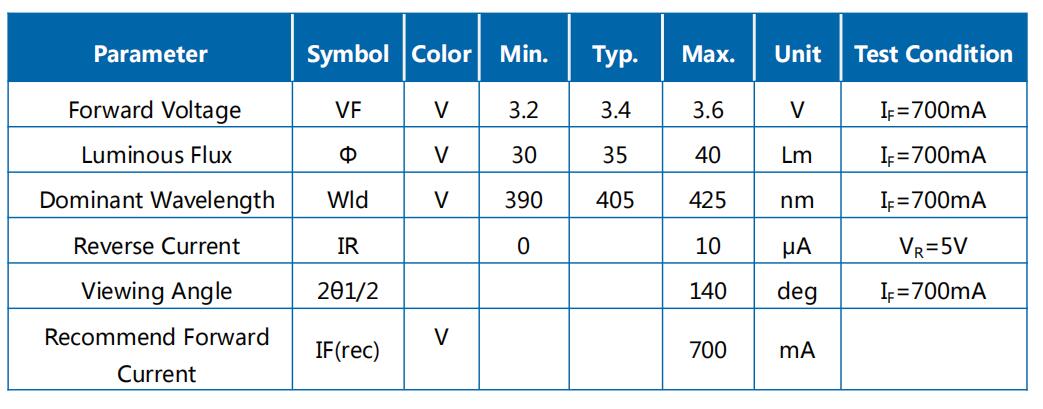

★UV led chip voltage is higher than other color chip,normal can be 3.4-3.6V
★1W UV, current is 350mA;3W UV, 7000mA;5W UV, 1400mA(if 6.4-7.2V/700mA)
★Light angle is 140deg,if make 60deg or 90deg,please tell us
★If use for curing light,suggest use 400-405nm
★CE ROHS ISO approved
★UV led use moding type lens,please don't press the led lens top when sodering led onto the pcb
★1000pcs/reel,after received the leds,please check the package at first;if leaked,please bake again,at 60℃/12hours
★Chip brand usually is Epileds,other brands based on your demands
