JH-18ZRGBWZYV14G45-E6A-M
LEDGUHON
| Quantity: | |
|---|---|
Product Feature:
★Adopt well-known vender’s chip package
★99.99% gold wire welding
★6in1 ,Good bright spots and High bright
Product Use:
★Stage Light,Decorative Light
★Fountain Light,Aquarium Light,etc
Remarks:

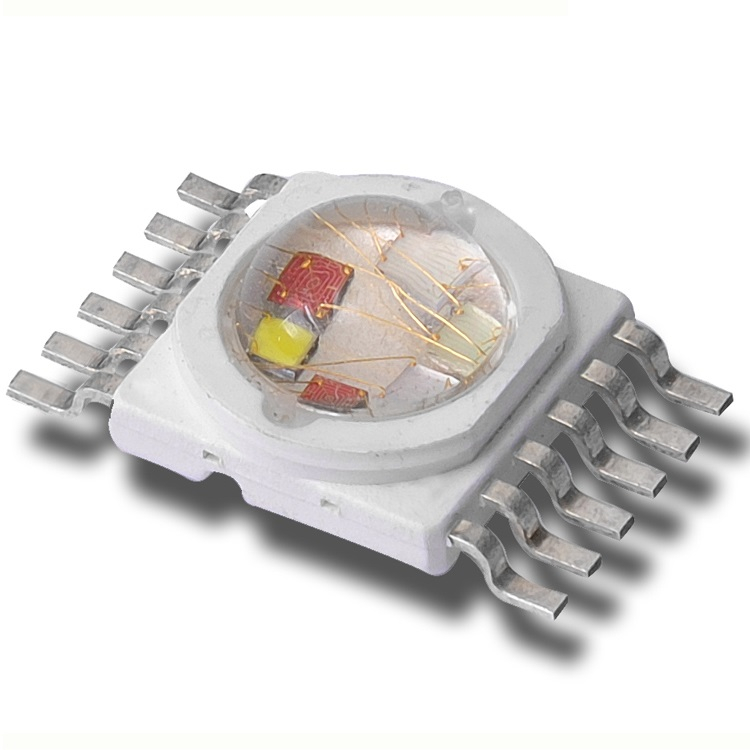

★This kind is 6in1 led, have 6 different colors,RGBWYV
★Can custom the color,if need custom,please tell ue your wavelength and color
★As 6in1, the chips number is many in a small led,so the heat will be high, you must use the good heat sink when use the led
★Please use 260℃/3s by reflow soldering or 360℃/3s by hand
★The pack will use tube pack,44 or 45pcs/tube

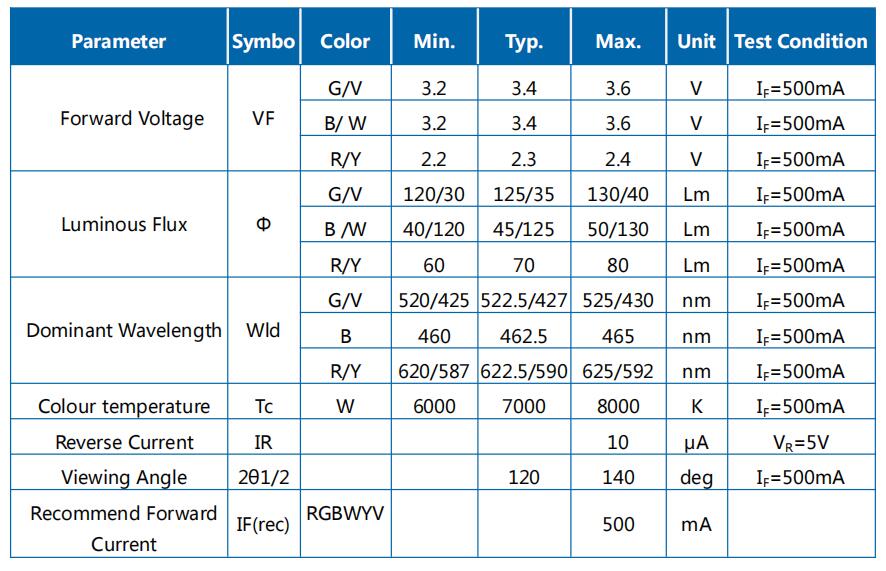

★Please confirm the current is 500mA for each color,too higher current will have too higher heat,maybe damage the led
★Red and Yellow,voltage 2.2-2.4V;Green,UV,Blue and White,voltage 3.2-3.6V,please don't use too high voltage power supply
★Light angle is 120-140deg, this kind don't make 60deg and 90deg recently
★CE ROHS approved
