JH-3IR6G42-T3A-M810
LEDGUHON
| Quantity: | |
|---|---|
Product Feature:
★Adopt well-known vender’s chip package
★99.99% gold wire welding
★Good bright spots and High light power
Product Use:
★Monitoring, Infrared equipment,etc
Remarks:

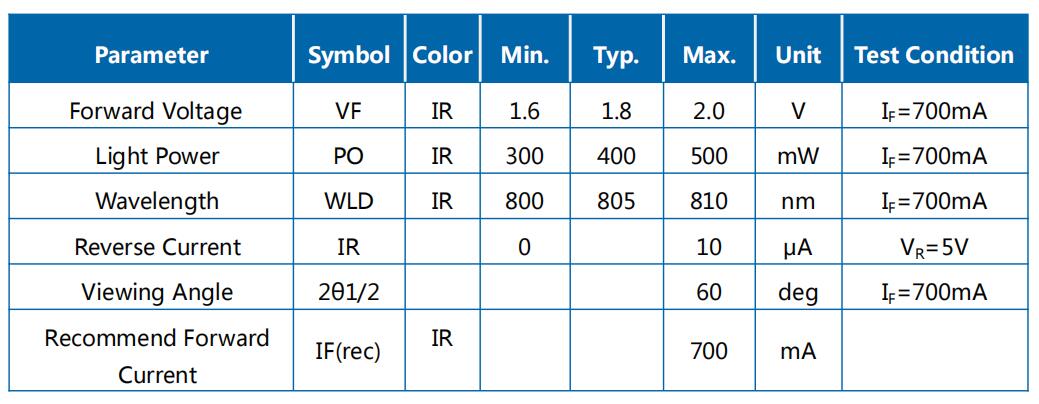

★This kind IR led is 3W IR 800-810nm led, use 1.6-2.0V and 700mA
★If use 700mA,call it as 3W;if use 350mA, call it as 1W
★The led 1W or 3W based on the current,please don't use Voltage*Current to caculate the led power
★Light power is 300-500mW test at 700mA; if test by 350mA,will be about 100-200mW
★Sometimes can reach 1000mA,if use this current,please make very good heat sink
★Moding type,800pcs/reel,when received the led,please check the package is well
★If package bag is leaked,please bake the led at 60℃/12hours,then can use normally
★Light angle is 60deg,also can make 140deg and 90deg
★When use reflow soldering,please prepare at 260℃/3s MAX,it is very important
★CE ROHS approved
★Copper frame and double gold wires weld,make sure the led good heat sink ability
