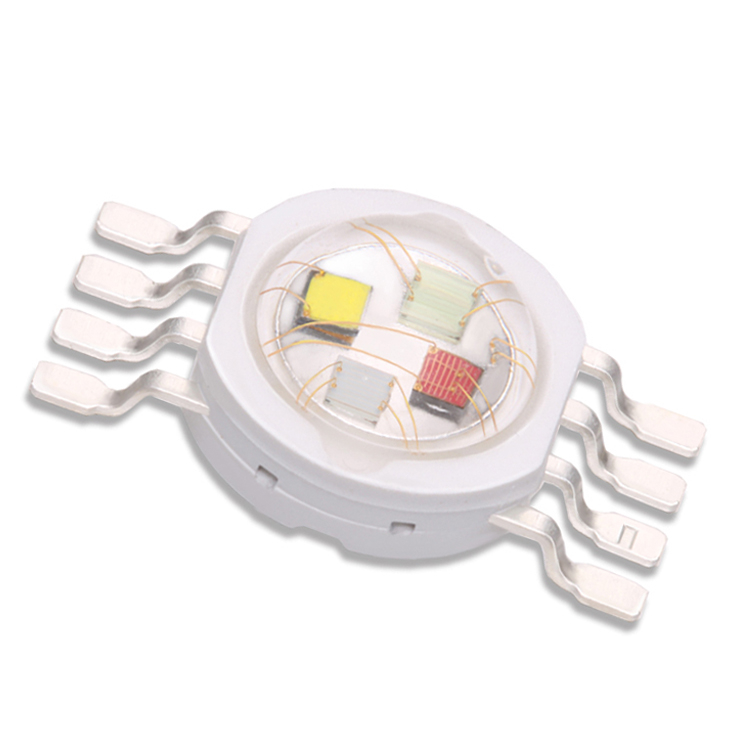

Make 8pins High Power 4w RGBW 40mil Led Chip

Product Feature:

★Adopt well-known brand chip package

★99.99% gold wire welding

★Good bright spots and High bright

Product Use:

★Stage Light,Decorative Light

★Fountain Light,Aquarium Light,etc

Remarks:

★This kind led is RGBW led,which use 4 different colors chips to make

★The colors can custom,RGBW or RGBWW can make as your demands

★Led chips layout can be RGBW,RGWB,GWRB and so on,if need other layout,please tell us at first

★Suggest use 350mA for each color, then the led power we call it as 4W, each 1W

★About the packing,will use 700pcs/reel;if quantity is small, will use tube packing

★Please use 260℃/3s for the reflow soldering; and 360℃/3s for the heating platform

★Please use good heat sink,as 4 chips into a led,when the led working, the heat will be high

★We use the copper frame and gold wires to pack the led

★CE ROHS approved

★Please confirm the led packing bag is well when received the package;if not,please bake the led on 60℃/12hours at first to do the dehumidification

★Please wear the anti-static ring always
