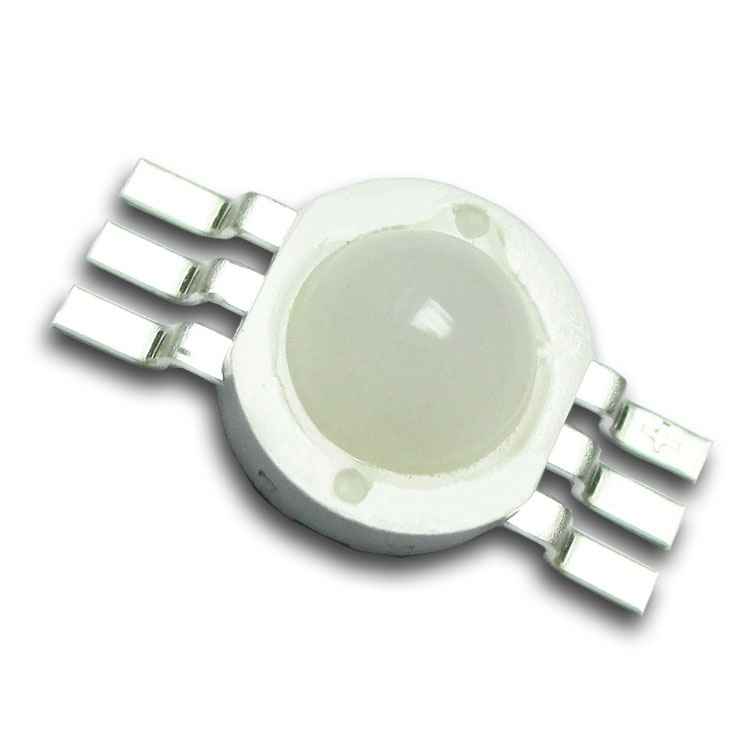

Factory Sell 6pins Milky High Power 9w RGB Led Chip

Product Feature:

★Adopt well-known vender’s chip package

★99.99% gold wire welding and copper frame

★Good bright spots and High bright

Product Use:

★Stage Light,Decorative Light

★Fountain Light,Aquarium Light,etc

Remarks:

★This kind is high power RGB led,use milky lens to make

★We use Epileds chip to make this kind 9W RGB LED

★Each color is 3W, test at 700mA;the red color voltage is lower than green and blue,please note

★Can exchange the color chip palce,based on your demands;normal make RGB;also can make RBG and GRB

★Normal light agnle is 140deg,if need other deg lens,please ask

★Usually 1000pcs/reel ;if by tube, then 50pcs/tube,10tubes/bag,total 500pcs/bag

★When receive the leds,please check the package whether is well at first

★If the packing is leaked,please bake the led at 60℃/12hours to make dehumidification

★When use the reflow soldering, the MAX limit is 260℃/3s,please note

★When the led working,please don't press the led top lens,as the top lens will be soft,if press heavy,will damage the led gold wires,then the led don't work

★ISO 9001 approved
