JH-1WR14G30-F2A
LEDGUHON
| Quantity: | |
|---|---|
Product Feature:
★Adopt well-known brand chip package
★99.99% gold wire welding and copper frame
★Good bright spots and High bright
Product Use:
★Stage Light,Decorative Light
★Fountain Light,Aquarium Light,etc
Remarks:

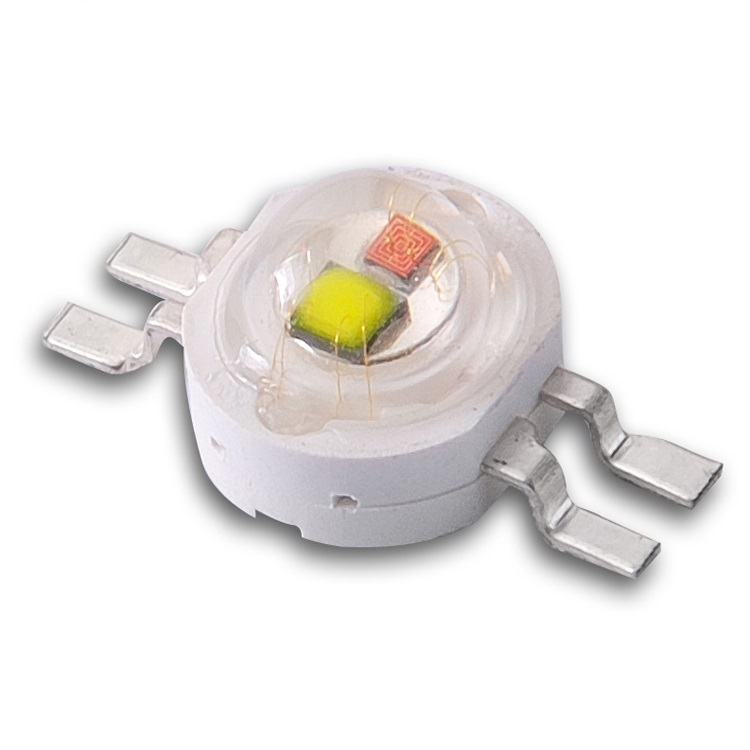

★This kind is high power 2W white+red led,2 colors into 1 led
★Use 4pins frame to make, make sure the 2 colors can control separately
★The white color is 6000-8000K CCT,if you need other CCT,please tell us
★The white chip and the red chip can exchange the place

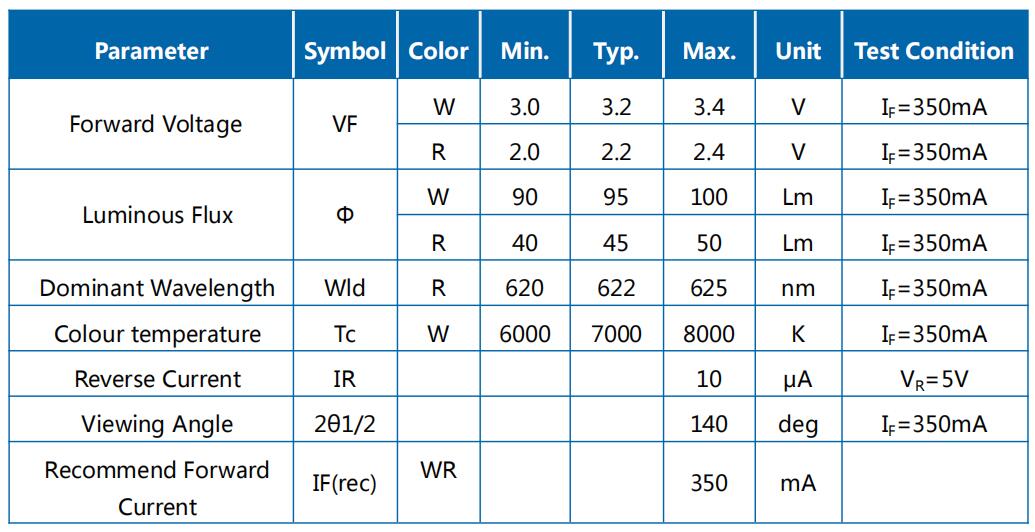

★We suggest use 350mA for each color,but white color voltage is 3.0-3.4V and red is 2.0-2.4V,so please use constant current power supply
★The light angle is 140deg,also can make 60deg,but price is higher
★When use reflow soldering to soldering the led, the MAX temperature is 260℃/3s,please don't pass it
★The reel package is 1000pcs/reel,after receive the package,please make sure the bag is not leaked;if leaked,please bake the leds at first,at 60℃/12hours
★CE ROHS approved
★Please wear the anti-static ring always
★Please don't press the led top lens heavily,as will demage the led inside part,such as the gold wires,then the led don't work,please be careful
★The red color wavelength is 620-625nm,if you want other wavelength,please tell us at first
