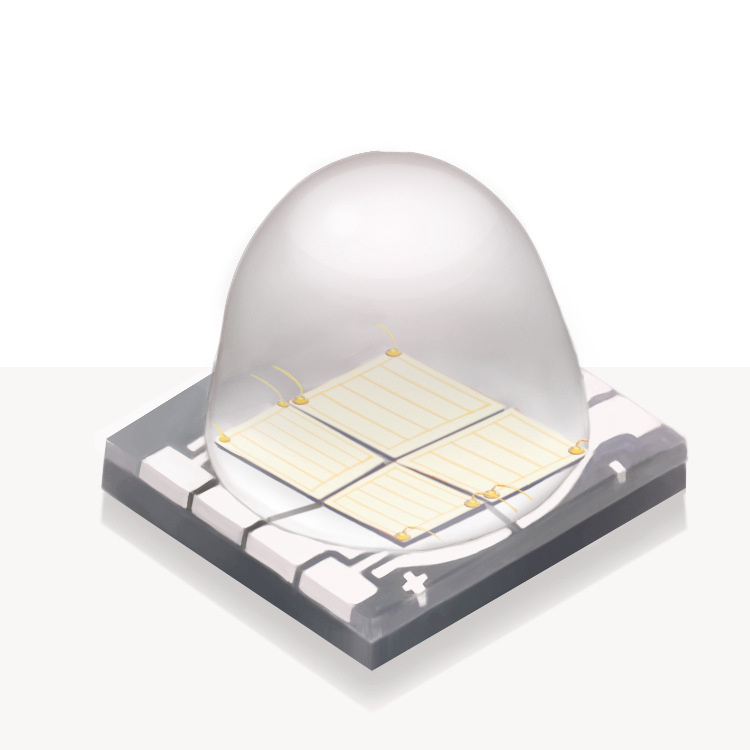

JH-5050B6G45-T8A
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Well-known chip material, EPILEDS
• 99.99% gold wire bonding
• High flux per LED
• Industry best moisture sensitivity
• Low-temp & lead-free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Blue | 3.2 | 3.4 | 3.6 | V | IF=700mA |
| Luminous Flux | Blue | 40 | 50 | 60 | LM | IF=700mA | |
| Wavelength | Wld | Blue | 460 | 462.5 | 465 | NM | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 120 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | Blue | 700 | mA |
Precautions in Handling & Use:
• Repack unused devices with anti-moisture packing, fold them to close any opening, and then store them in a dry place.
• Devices require baking before mounting if the humidity card reading is >60 % at 23 ± 5 ºC.
• Devices must be baked for 10~24 hours at 70 ± 5 ºC if baking is required.
• The LEDs are sensitive to static electricity and surge current. It is recommended to use a wristband or anti-electrostatic glove when handling the LEDs. If voltage exceeding the absolute maximum rating is applied to LEDs, it may cause damage or even destruction to LED devices. Damaged LEDs may show some unusual characteristics such as an increase in leakage current, lowered turn-on voltage, or abnormal lighting of LEDs at low current.
