JH-3535W12JC45-T7A-WDZ
LEDGUHON
| Quantity: | |
|---|---|

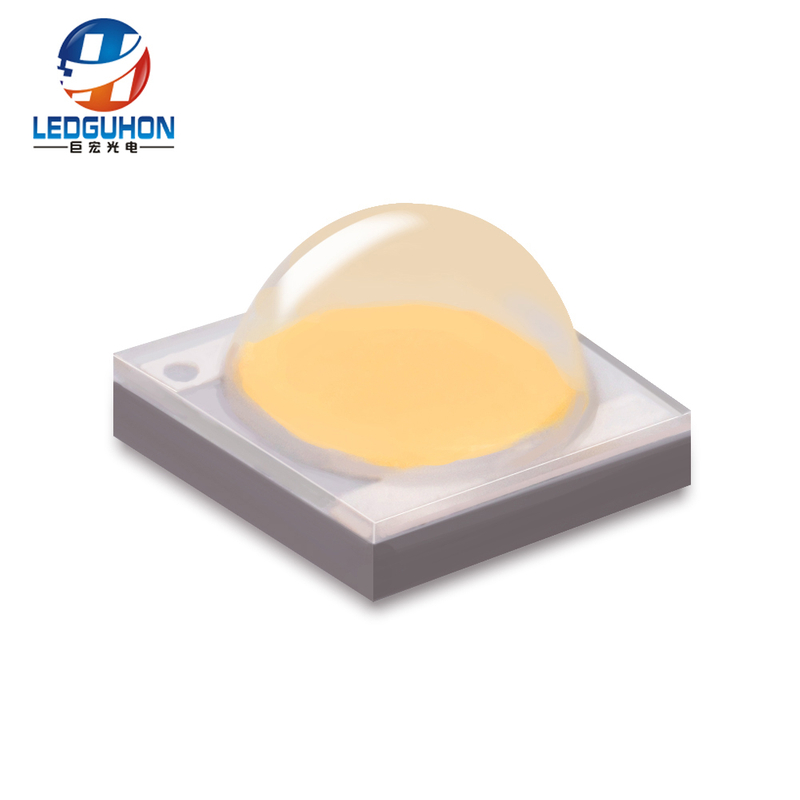

High-power 3W 3535 white LED ceramic led, high CRI 90 95
| Part No. | CCT(K) | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) | CRI |
| JH-3535W12JC45-T7A-WDZ | 4000-4500 | 3 | 2.8-3.2 | 700 | 240-280 | 120 | 70 |
| JH-3535W12JC45-T7A-WDZ90 | 4000-4500 | 3 | 2.8-3.2 | 700 | 200-240 | 120 | 90 |
| JH-3535W12JC45-T7A-WDZ95 | 4000-4500 | 3 | 2.8-3.2 | 700 | 180-220 | 120 | 95 |
Note:
The color temperature can be customized according to the requirements of 3000/4000/6000/10000K Etc.
The luminous Angle can be customized to 30/60/90/120/180 degrees
Color rendering index CRI can do 70/90 etc

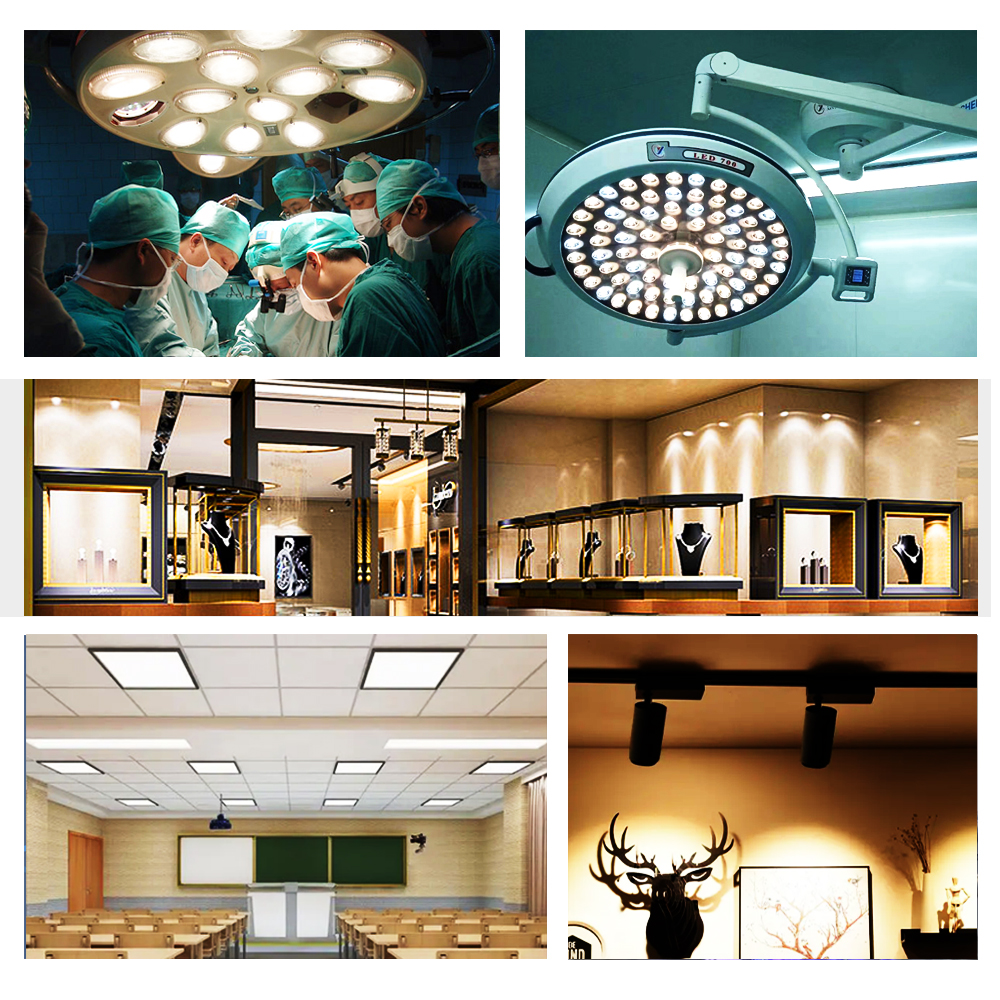

Shadowless lights, headlights, flashlights, spotlights, spotlights, outdoor lighting, etc.
