JH-5050W12JC1530-C5A-Y
LEDGUHON
Availability: | |
---|---|
Quantity: | |

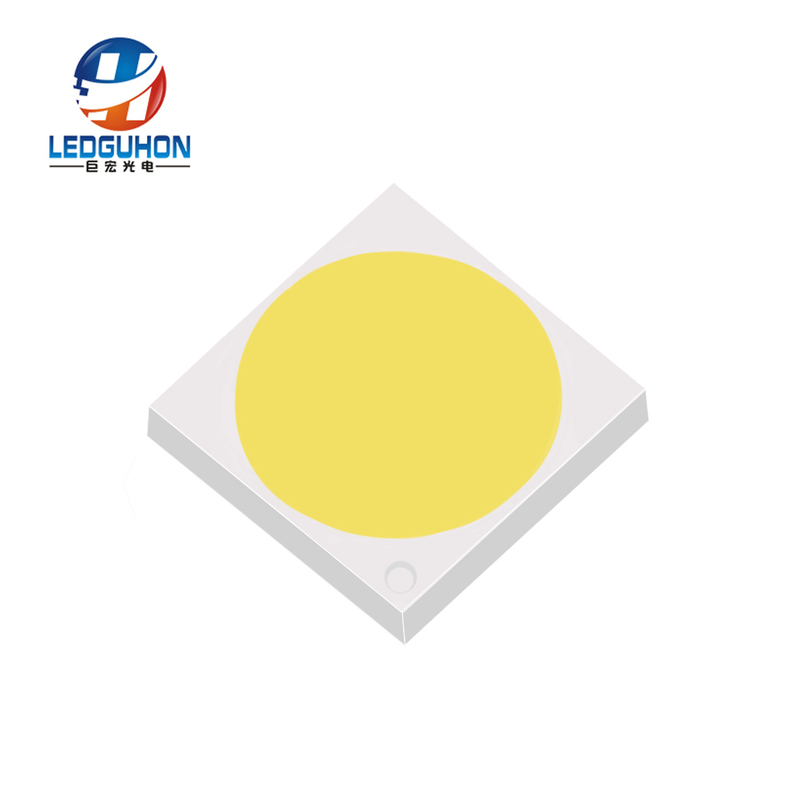

5050 EMC plane High power 3W white smd led
Part No. | CCT(K) | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) | CRI |
JH-5050W12JC1530-C5A-Y | 6000-8000 | 3 | 2.8-3.2 | 700 | 300-320 | 120 | 70 |
JH-5050WW12JC1530-C5A-Y | 2800-3200 | 3 | 2.8-3.2 | 700 | 280-300 | 120 | 70 |
Note:
The color temperature can be customized according to the requirements of 3000/4000/6000/10000K 1800-20000K Etc.
Color rendering index CRI can do 70/90 etc
Strong flashlight, headlight, miner's light, car light, fishing light, etc
5050 EMC plane High power 3W white smd led
Part No. | CCT(K) | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) | CRI |
JH-5050W12JC1530-C5A-Y | 6000-8000 | 3 | 2.8-3.2 | 700 | 300-320 | 120 | 70 |
JH-5050WW12JC1530-C5A-Y | 2800-3200 | 3 | 2.8-3.2 | 700 | 280-300 | 120 | 70 |
Note:
The color temperature can be customized according to the requirements of 3000/4000/6000/10000K 1800-20000K Etc.
Color rendering index CRI can do 70/90 etc
Strong flashlight, headlight, miner's light, car light, fishing light, etc
