JH-5050RGBW18S4047-T8A-KGBL455
LEDGUHON
| Quantity: | |
|---|---|

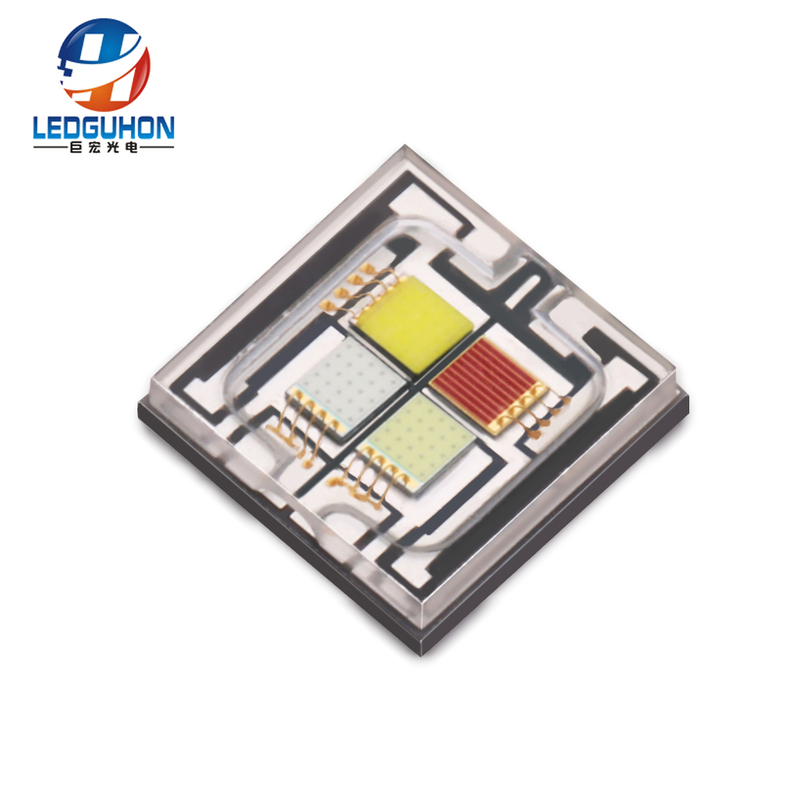

5050 12W/20W High power flat lens RGBW LED
| Part No. | CCT(K) | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) |
| JH-5050RGBW18S38-T8A-KGBL457.5 | 620-625 | 3 | 2.0-2.6 | 700 | 60-80 | 140 |
| 520-525 | 3 | 3.0-3.6 | 700 | 170-190 | ||
| 455-460 | 3 | 3.0-3.6 | 700 | 30-50 | ||
| 6000-8000 | 3 | 3.0-3.6 | 700 | 210-240 | ||
| JH-5050RGBW18S4047-T8A-KGBL455 | 620-625 | 5 | 2.0-2.6 | 2000 | 180-220 | 140 |
| 520-525 | 5 | 3.0-3.6 | 2000 | 500-550 | ||
| 450-455 | 5 | 3.0-3.6 | 2000 | 100-120 | ||
| 6000-8000 | 5 | 3.0-3.6 | 2000 | 500-550 |
Note:
Wavelength can be customized according to demand 365-1600nm,
Color temperature(CCT) can be customized 1700-20000K.
The luminous Angle can be customized to 30/60/90/120/140 degrees
Street Light,Aquarium Light,Shadowless lamp etc.
