JH-3535W18S5763-T8A-TMGBL
LEDGUHON
| Quantity: | |
|---|---|

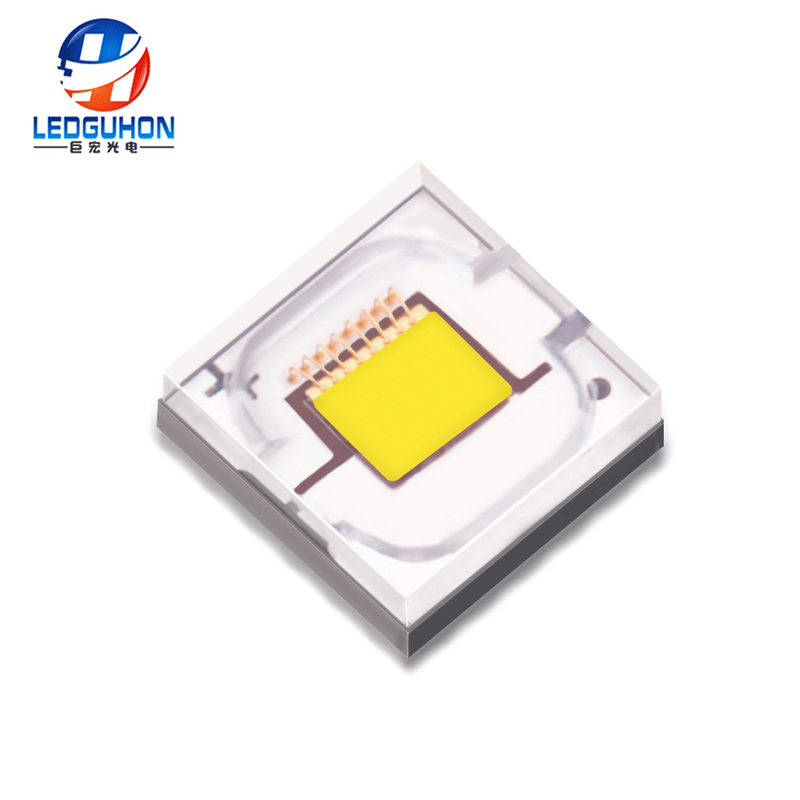

3535 5W/10W high power flat glass lens white LED.
| Part No. | CCT(K) | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) | CRI |
| JH-3535W18S4047-T8A-TMGBL | 6000-8000 | 5 | 3.0-3.6 | 2000 | 660-700 | 140 | 70 |
| JH-3535W18S5763-T8A-TMGBL | 6000-8000 | 15 | 3.0-3.6 | 5000 | 1600-1800 | 140 | 70 |
Note:
The color temperature can be customized according to the requirements of 3000/4000/6000/10000K Etc.
The luminous Angle can be customized to 30/60/90/120/140 degrees
Color rendering index CRI can do 70/90 etc
Shadowless lights, headlights, flashlights, spotlights, spotlights, outdoor lighting, car lights,etc.
3535 5W/10W high power flat glass lens white LED.
| Part No. | CCT(K) | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) | CRI |
| JH-3535W18S4047-T8A-TMGBL | 6000-8000 | 5 | 3.0-3.6 | 2000 | 660-700 | 140 | 70 |
| JH-3535W18S5763-T8A-TMGBL | 6000-8000 | 15 | 3.0-3.6 | 5000 | 1600-1800 | 140 | 70 |
Note:
The color temperature can be customized according to the requirements of 3000/4000/6000/10000K Etc.
The luminous Angle can be customized to 30/60/90/120/140 degrees
Color rendering index CRI can do 70/90 etc
Shadowless lights, headlights, flashlights, spotlights, spotlights, outdoor lighting, car lights,etc.
