JH-3535R18G4740-T8A-GBL
LEDGUHON
| Quantity: | |
|---|---|

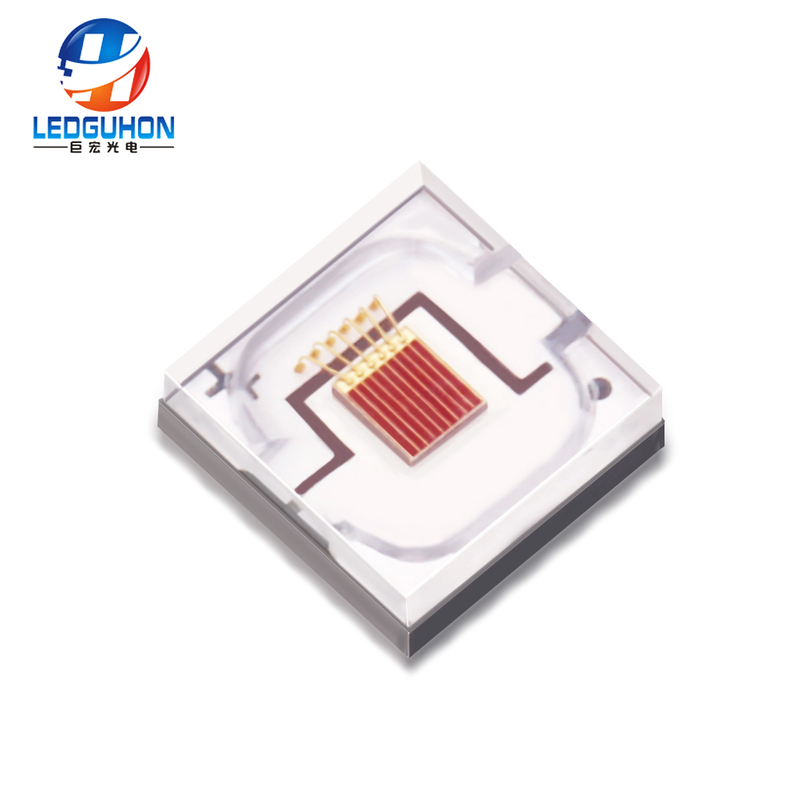

3535 5W/10W high power flat glass lens Red LED.
| Part No. | Wld(nm) | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) |
| JH-3535R18G4740-T8A-GBL | 620-625 | 5 | 2.0-2.6 | 2000 | 130-150 | 140 |
| JH-3535R18G6357-T8A-GBL | 620-625 | 10 | 2.0-2.6 | 5000 | 320-370 | 140 |
Note:
The wavelength can be customized according to requirements 365-1600nm.
The luminous Angle can be customized to 30/60/90/120/140 degrees
Plant lighting, Medical beauty, landscape lighting, pool light, red light medical etc.
3535 5W/10W high power flat glass lens Red LED.
| Part No. | Wld(nm) | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) |
| JH-3535R18G4740-T8A-GBL | 620-625 | 5 | 2.0-2.6 | 2000 | 130-150 | 140 |
| JH-3535R18G6357-T8A-GBL | 620-625 | 10 | 2.0-2.6 | 5000 | 320-370 | 140 |
Note:
The wavelength can be customized according to requirements 365-1600nm.
The luminous Angle can be customized to 30/60/90/120/140 degrees
Plant lighting, Medical beauty, landscape lighting, pool light, red light medical etc.
