JH-5050WWW18S4047-T8A-JTMGBL
LEDGUHON
| Quantity: | |
|---|---|

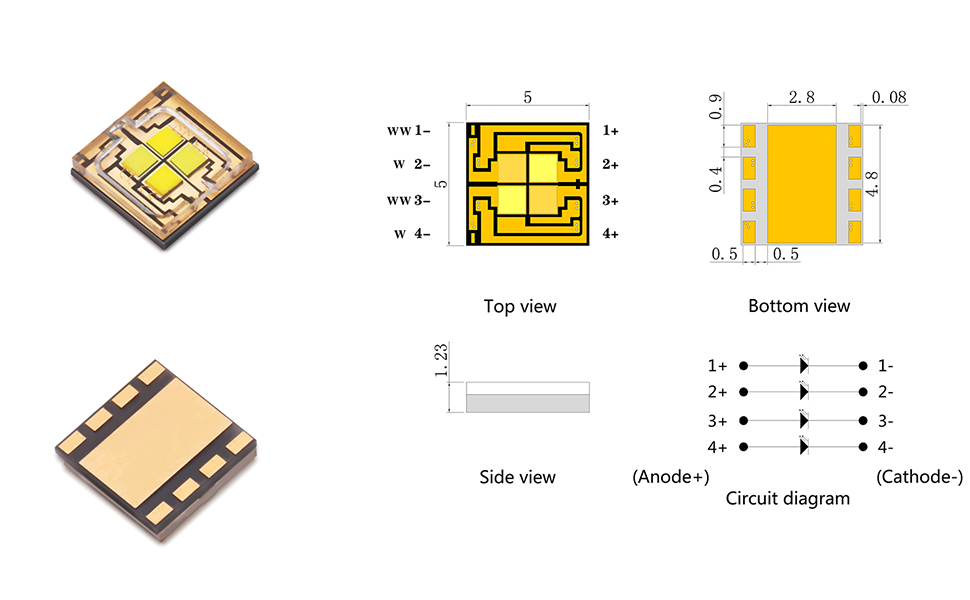

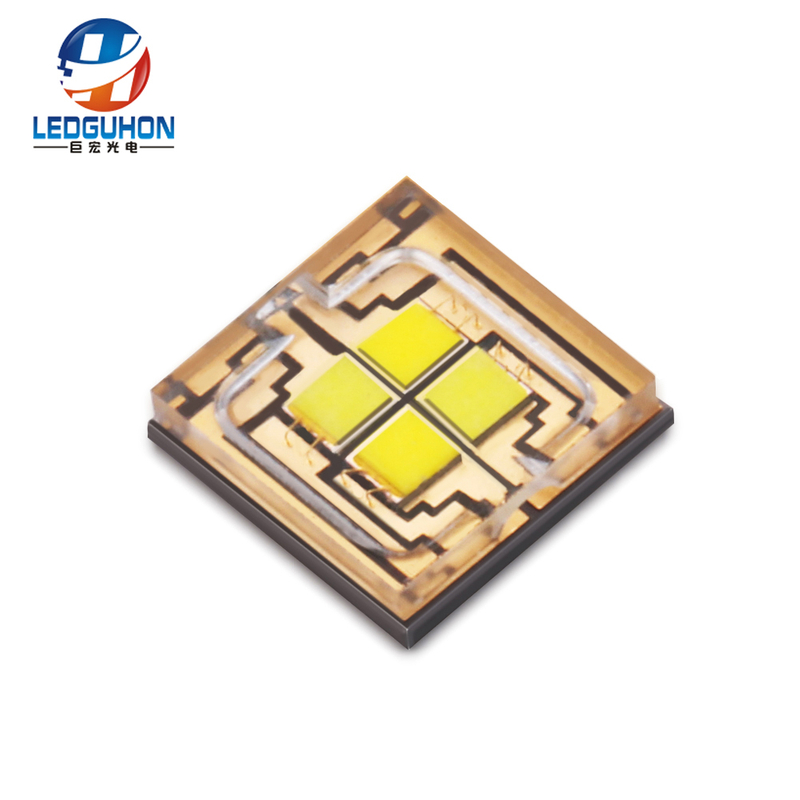

5050 12W/20W High power flat lens Dual temperature LED
| Part No. | CCT(K) | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) |
| JH-5050WWW18U45-T8A-JTMGBL | 3500-4000 | 3*2 | 3.0-3.6 | 700*2 | 230-250*2 | 140 |
| 8000-10000 | 3*2 | 3.0-3.6 | 700*2 | 260-280*2 | ||
| JH-5050WWW18S4047-T8A-JTMGBL | 4300-4600 | 5*2 | 3.0-3.6 | 2000*2 | 600-650*2 | 140 |
| 6000-8000 | 5*2 | 3.0-3.6 | 2000*2 | 650-700*2 |
Note:
Color temperature(CCT) can be customized 1700-20000K.
The luminous Angle can be customized to 30/60/90/120/140 degrees
Street Light,Aquarium Light,Shadowless lamp etc.
5050 12W/20W High power flat lens Dual temperature LED
| Part No. | CCT(K) | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) |
| JH-5050WWW18U45-T8A-JTMGBL | 3500-4000 | 3*2 | 3.0-3.6 | 700*2 | 230-250*2 | 140 |
| 8000-10000 | 3*2 | 3.0-3.6 | 700*2 | 260-280*2 | ||
| JH-5050WWW18S4047-T8A-JTMGBL | 4300-4600 | 5*2 | 3.0-3.6 | 2000*2 | 600-650*2 | 140 |
| 6000-8000 | 5*2 | 3.0-3.6 | 2000*2 | 650-700*2 |
Note:
Color temperature(CCT) can be customized 1700-20000K.
The luminous Angle can be customized to 30/60/90/120/140 degrees
Street Light,Aquarium Light,Shadowless lamp etc.
