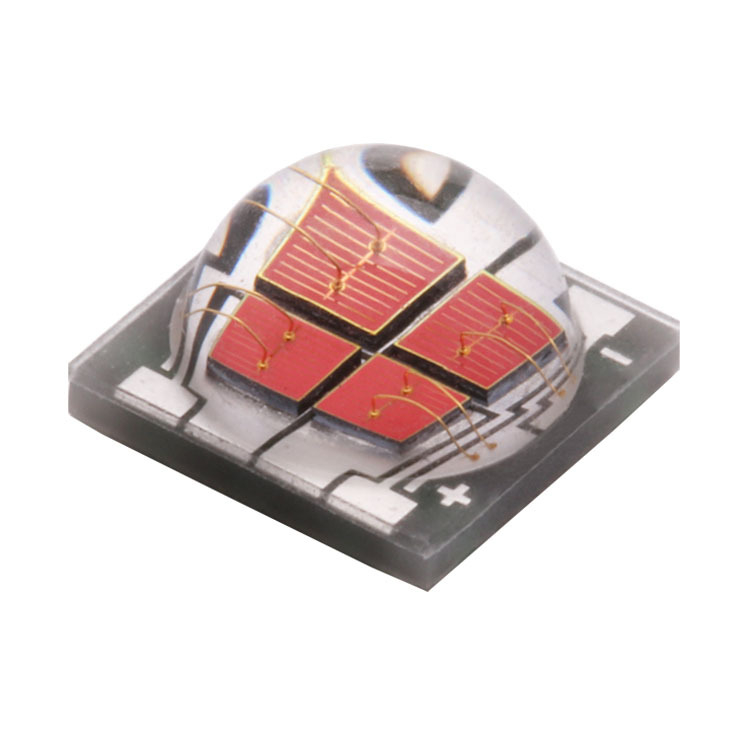

JH-5050Y12G42-T8A
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Small size,SMD Package with ceramic substrate
• Lower thermal resistance, higher light efficiency
• Ceramic base with good heat conductivity to enlarge the lifespan
• Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
• SMD Components suitable for reflow-soldering
• Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)
Typical Applications:
• Reading lights (car, bus, aircraft)
• Portable (flashlight, bicycle)
• Uplighters/ Downlighters
• Decorative/ Entertainment
• Bollards/ Security/ Garden
• Indoor/ Outdoor Commercial and Residential Architecture
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Yellow | 2.2 | 2.4 | 2.6 | V | IF=700mA |
| Luminous Flux | Yellow | 80 | 90 | 100 | LM | IF=700mA | |
| Wavelength | Wld | Yellow | 590 | 592.5 | 595 | NM | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 120 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | Yellow | 700 | mA |
