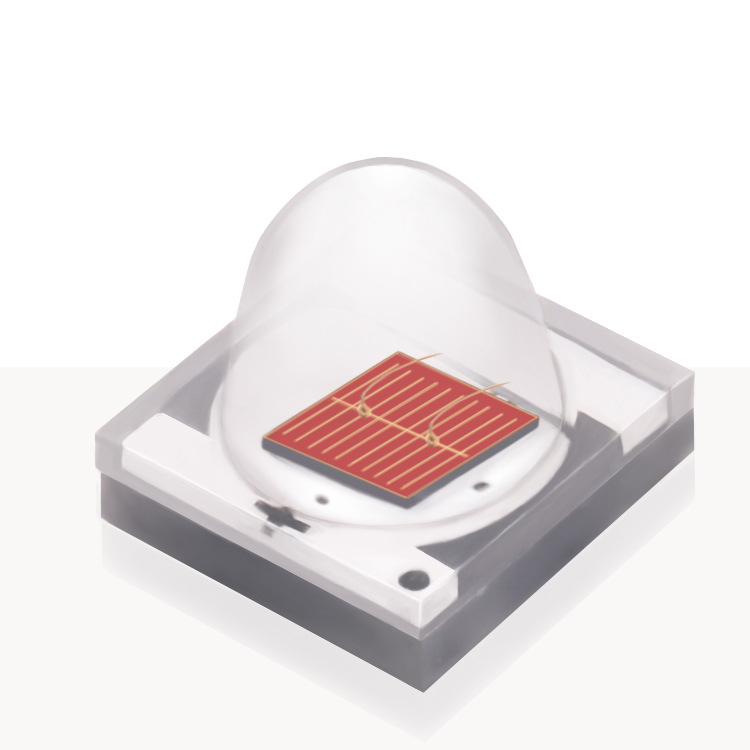

JH-3535R6G42-T8A-660
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Well-known chip material, EPILEDS
• 99.99% gold wire bonding
• High flux per LED
• Industry best moisture sensitivity
• Low-temp & lead-free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Typical Applications:
• LED Top Lighting
• LED Inter Lighting
• LED Multi-layer Cultivation
• Urban Greenhouse
• Vertical Farming
• Algae LED Grow Light
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Deep Red | 2.2 | 2.4 | 2.6 | V | IF=700mA |
| Luminous Flux | Deep Red | 30 | 40 | 50 | LM | IF=700mA | |
| Wavelength | Wld | Deep Red | 660 | 663 | 665 | NM | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 60 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | Deep Red | 700 | mA |
