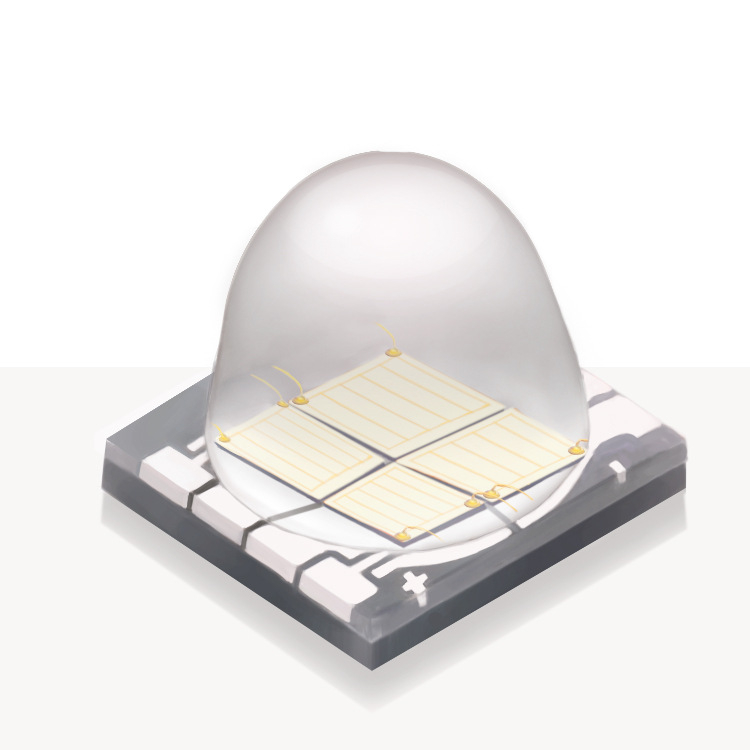

JH-5050G6G45-T8A
LEDGUHON
| Quantity: | |
|---|---|
Typical Applications:
• Portable LED Flashlight
• Automobile illumination
• Architectural lighting
• Landscape lighting
• LED Street Light, LED High Bay Lights, LED Tunnel Lights
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Green | 3.2 | 3.4 | 3.6 | V | IF=700mA |
| Luminous Flux | Green | 190 | 200 | 210 | LM | IF=700mA | |
| Wavelength | Wld | Green | 520 | 522.5 | 525 | NM | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 60 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | Green | 700 | mA |
Precautions in Handling & Use:
• For over-current protection, users are recommended to apply resistors connected in series with the LEDs to mitigate sudden changes in the forward current caused by the shift of forward voltage.
• This device should not be used in any type of fluid such as water, oil, organic solvent, etc. Some solvent-based cleaning agents may damage the silicone resins used in the device.
• When the device is in operation, the forward current should be carefully determined considering the maximum ambient temperature and corresponding junction temperature.
• LEDs must be stored in a clean environment. If the LEDs are to be stored for three months or more after being shipped, they should be packed in a nitrogen-filled container (the shelf life of sealed bags is 12 months at temperatures 0~40 ºC, 0~90 % RH).
