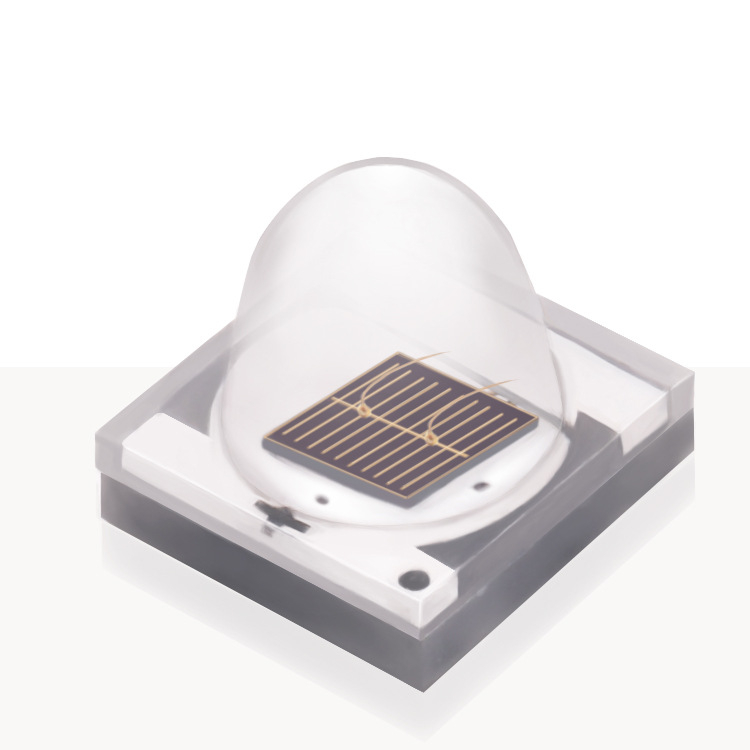

JH-3535IR6G42-T8A-850
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Well-known chip material, EPILEDS
• 99.99% gold wire bonding
• High flux per LED
• Industry best moisture sensitivity
• Low-temp & lead-free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Typical Applications:
• IR Communication/Wireless Communication
• Emitting Sensor
• CCTV
• Detector
• Monitoring and Camera
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | IR | 1.4 | 1.6 | 1.8 | V | IF=700mA |
| Power Dissipation | PO | IR | 845 | 847 | 850 | NM | IF=700mA |
| Wavelength | Wld | IR | 300 | 400 | 500 | mW | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 60 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | IR | 700 | mA |
