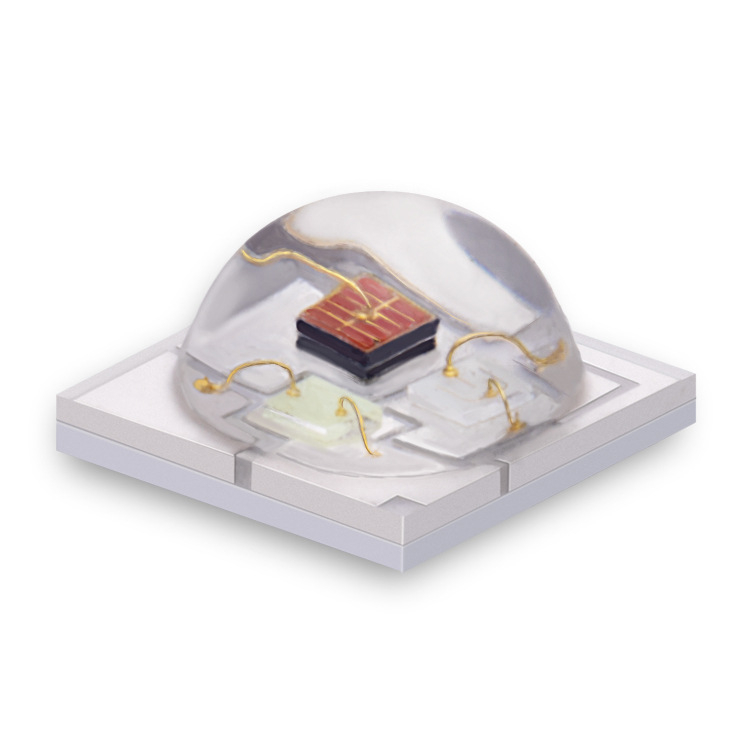

JH-3535RGB12S20-T9A
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Well-known chip material
• 99.99% gold wire bonding
• Full-color spot, well color consistency
• Red-Green-Blue 3 colors in one Package
• High flux per LED
• Low-temp & lead-free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Typical Applications:
• Portable (flashlight, bicycle)
• Uplighters/Downlighters
• Decorative/Entertainment (stage light)
• Bollards/Security/Garden
• Indoor/Outdoor Commercial and Residential Architectural
• Automotive Ext (Stop-Tail-Turn, CHMSL, Width Lamp)
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Red | 2.0 | 2.2 | 2.4 | V | IF=150mA |
| Green | 3.0 | 3.2 | 3.4 | V | IF=150mA | ||
| Blue | 3.0 | 3.2 | 3.4 | V | IF=150mA | ||
| Luminous Flux | Red | 20 | 22 | 25 | LM | IF=150mA | |
| Green | 30 | 35 | 40 | LM | IF=150mA | ||
| Blue | 5 | 7 | 10 | LM | IF=150mA | ||
| Wavelength | Wld | Red | 620 | 622.5 | 625 | NM | IF=150mA |
| Green | 520 | 522.5 | 525 | NM | IF=150mA | ||
| Blue | 460 | 462.5 | 465 | NM | IF=150mA | ||
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 120 | Deg | IF=150mA | |||
| Recommend Forward Current | IF(rec) | RGB | 150 | mA |
