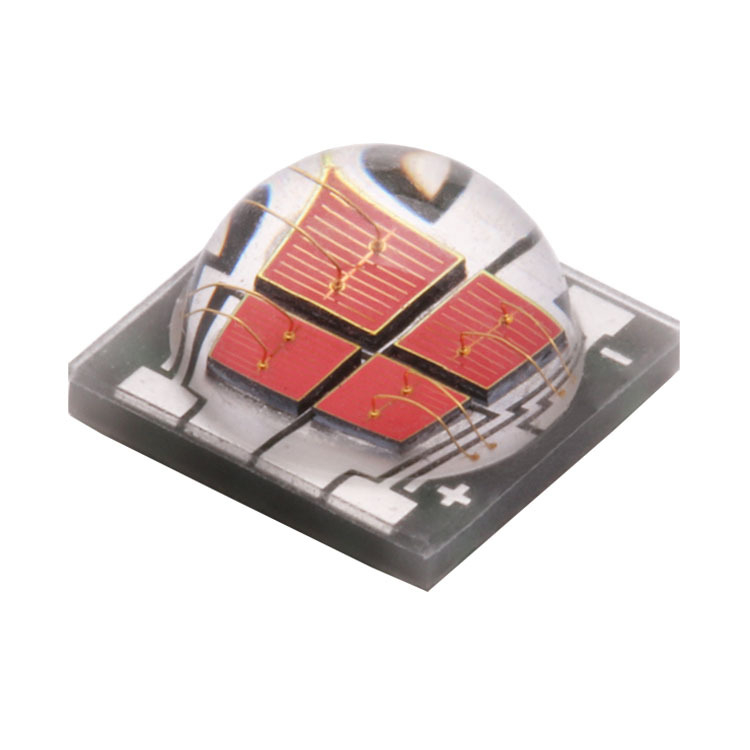

JH-5050R12G42-T8A-660
LEDGUHON
| Quantity: | |
|---|---|
Typical Applications:
• LED Top Lighting
• LED Inter Lighting
• LED Multi-layer Cultivation
• Urban Greenhouse
• Vertical Farming
• Algae LED Grow Light
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Deep Red | 2.2 | 2.4 | 2.6 | V | IF=700mA |
| Luminous Flux | Deep Red | 30 | 40 | 50 | LM | IF=700mA | |
| Wavelength | Wld | Deep Red | 660 | 662.5 | 665 | NM | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 120 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | Deep Red | 700 | mA |
Note:
• All high-power emitter LED products mounted on aluminum metal-core printed circuit boards can be lighted directly, but we do not recommend lighting the high-power products for more than 5 seconds without appropriate heat dissipation equipment. When using at 700mA, TS (cathode point) temperature should be controlled below 75°C, When using at 350mA, TS (cathode point) temperature should be controlled below 85°C.
• Wave peak and soak-stannum soldering are not suitable for these products.
• Reflow soldering should not be done more than two times. The reflow temperature we recommend is 260℃.
