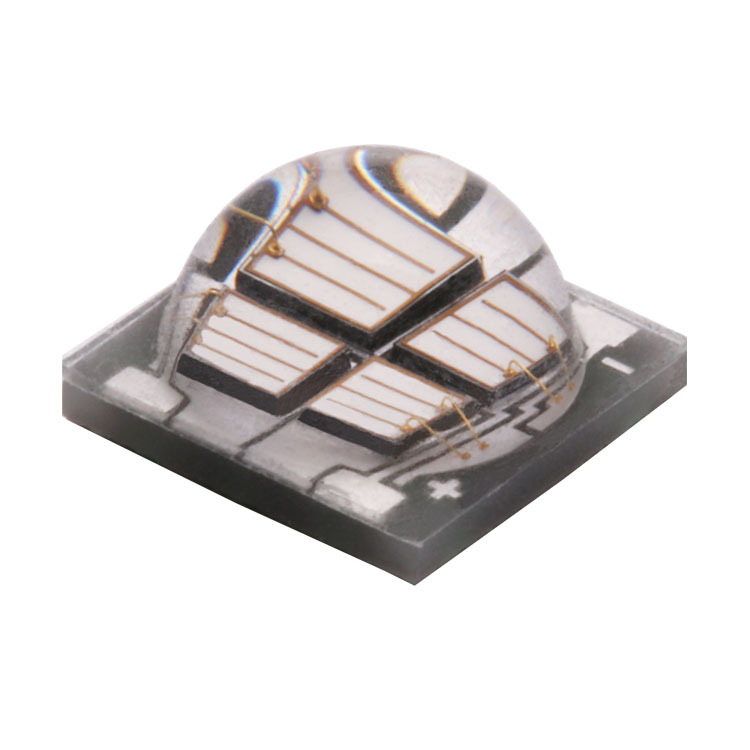

JH-5050G12S38-T8A
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Well-known chip material, EPILEDS
• 99.99% gold wire bonding
• High flux per LED
• Industry best moisture sensitivity
• Low-temp & lead-free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Green | 3.2 | 3.4 | 3.6 | V | IF=700mA |
| Luminous Flux | Green | 210 | 220 | 230 | LM | IF=700mA | |
| Wavelength | Wld | Green | 520 | 522.5 | 525 | NM | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 120 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | Green | 700 | mA |
Storage:
• Before opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.
• The LEDs should be used within a year.
• After opening the package, the LEDs should be kept at 30℃ or less and 30%RH or less.
• The LEDs should be used within 572 hours (4 Weeks) after opening the package.
• If the moisture-absorbent material (silica gel) has faded away or the LED has exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60℃±5 for 48 hours.
