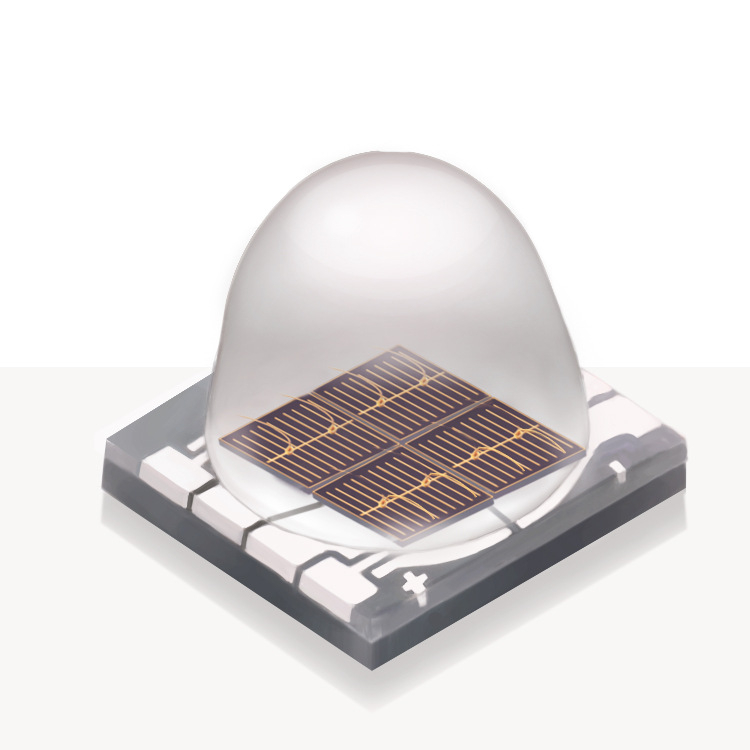

JH-5050IR6G42-T8A-810
LEDGUHON
| Quantity: | |
|---|---|
Typical Applications:
• Portable LED Flashlight
• Automobile illumination
• Architectural lighting
• Landscape lighting
• LED Street Light, LED High Bay Lights, LED Tunnel Lights
• Secruity application CCTV products
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | IR | 1.6 | 1.8 | 2.0 | V | IF=700mA |
| Luminous Power | PO | IR | 300 | 400 | 500 | mW | IF=700mA |
| Wavelength | Wld | IR | 800 | 805 | 810 | NM | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 60 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | IR | 700 | mA |
Heat Generation:
• When the LEDs are illuminating, the operating current should be decided after considering the ambient maximum temperature.
• Please consider the heat generation of the LED when is designed the PCB.
• The LEDs must be mounted on MCPCB or heat sink or applied thermal pad.
Typical Applications:
• Portable LED Flashlight
• Automobile illumination
• Architectural lighting
• Landscape lighting
• LED Street Light, LED High Bay Lights, LED Tunnel Lights
• Secruity application CCTV products
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | IR | 1.6 | 1.8 | 2.0 | V | IF=700mA |
| Luminous Power | PO | IR | 300 | 400 | 500 | mW | IF=700mA |
| Wavelength | Wld | IR | 800 | 805 | 810 | NM | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 60 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | IR | 700 | mA |
Heat Generation:
• When the LEDs are illuminating, the operating current should be decided after considering the ambient maximum temperature.
• Please consider the heat generation of the LED when is designed the PCB.
• The LEDs must be mounted on MCPCB or heat sink or applied thermal pad.
