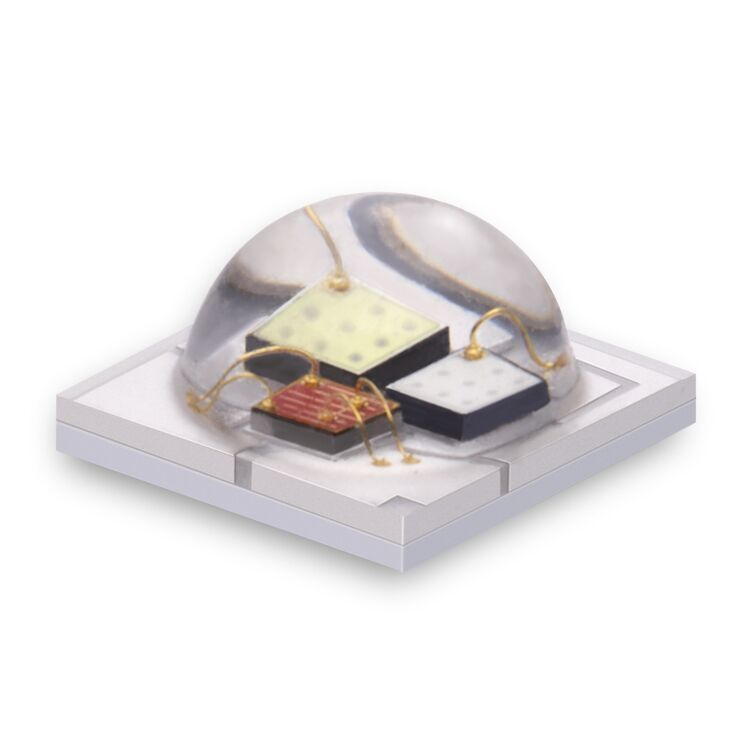

JH-3535RGB12S26-T9A
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Well-known chip material, EPILEDS
• 99.99% gold wire bonding
• Full-color spot, well color consistency
• Red-Green-Blue 3 colors in one Package
• High flux per LED
• Low-temp & lead-free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Typical Applications:
• Outdoor Landscape illumination & Architectural lighting
• Entertainment lighting/Stage lighting
• Linear light, wall washer, flood light, underground and underwater light
• Matrix panel lights, Moving Heads panels, Par cans lights
Data：
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Red | 2.0 | 2.2 | 2.4 | V | IF=350mA |
| Green | 3.0 | 3.2 | 3.4 | V | IF=350mA | ||
| Blue | 3.0 | 3.2 | 3.4 | V | IF=350mA | ||
| Luminous Flux | Red | 40 | 45 | 50 | LM | IF=350mA | |
| Green | 60 | 75 | 90 | LM | IF=350mA | ||
| Blue | 15 | 20 | 25 | LM | IF=350mA | ||
| Wavelength | Wld | Red | 620 | 623 | 625 | NM | IF=350mA |
| Green | 520 | 522 | 525 | NM | IF=350mA | ||
| Blue | 460 | 462 | 465 | NM | IF=350mA | ||
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 120 | Deg | IF=350mA | |||
| Recommend Forward Current | IF(rec) | RGB | 350 | mA |
