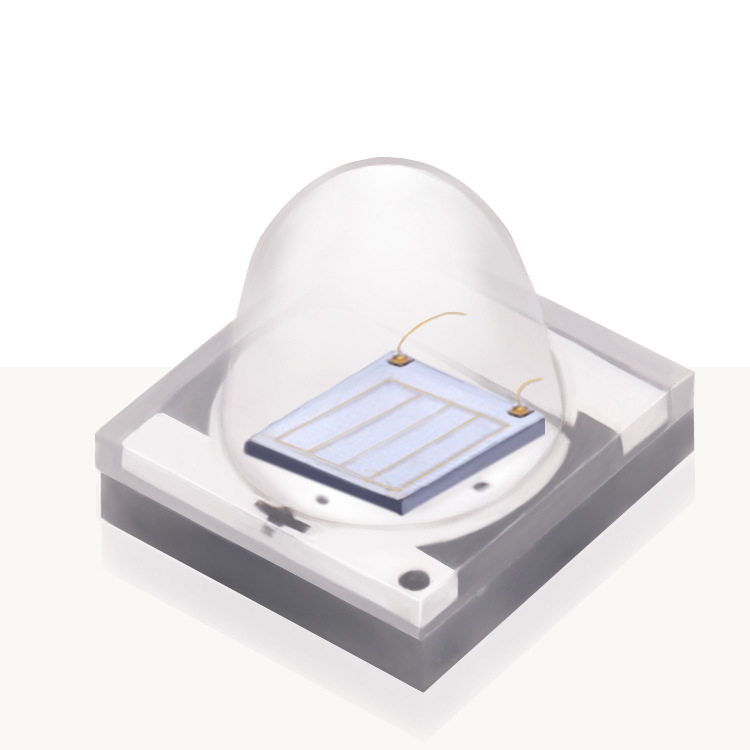

JH-3535V6G45-T8A-370
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Small size,SMD Package with ceramic substrate
• Lower thermal resistance, higher light efficiency
• Ceramic base with good heat conductivity to enlarge the lifespan
• Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
• SMD Components suitable for reflow-soldering
• Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)
Typical Applications:
• UV gluing, UV curing, UV marking
• UV drying of printing inks and lacquers
• Currency inspection
• Detects fluorescing minerals and gems
• Indoor/ Outdoor Lighting
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | UV | 3.2 | 3.4 | 3.6 | V | IF=700mA |
| Luminous Power | PO | UV | 800 | 1000 | 1200 | mW | IF=700mA |
| Wavelength | Wld | UV | 365 | 367.5 | 370 | NM | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 60 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | UV | 700 | mA |
