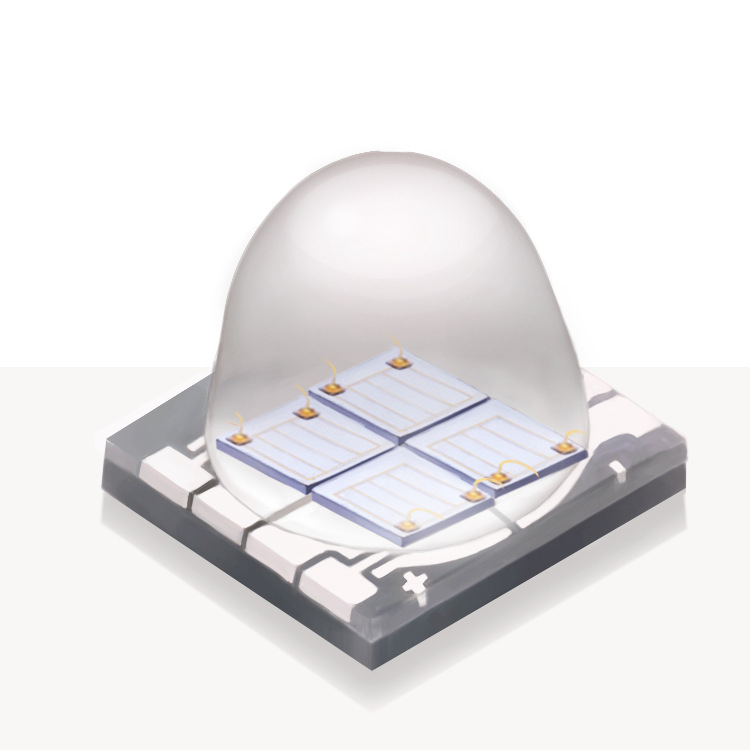

JH-5050V6G45-T8A-370
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Well-known chip material, EPILEDS
• 99.99% gold wire bonding
• High flux per LED
• Industry best moisture sensitivity
• Low-temp & lead-free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Typical Applications:
• UV gluing, UV curing, UV marking
• UV drying of printing inks and lacquers
• Currency inspection
• Detects fluorescing minerals and gems
• Indoor/ Outdoor Lighting
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | UV | 3.2 | 3.4 | 3.6 | V | IF=700mA |
| Luminous Flux | UV | 20 | 25 | 30 | LM | IF=700mA | |
| Luminous Power | PO | UV | 700 | 800 | 900 | mW | IF=700mA |
| Wavelength | Wld | UV | 365 | 367.5 | 370 | NM | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 60 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | UV | 700 | mA |
