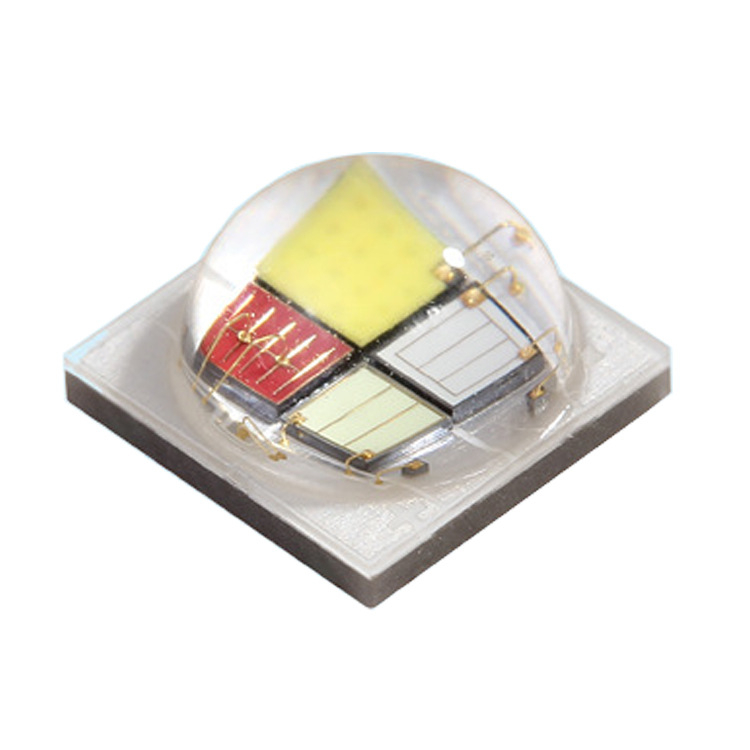

JH-5050RGBW12G45-T8A-457.5
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Well-known chip material, EPILEDS
• 99.99% gold wire bonding
• Full-color spot, well-color consistency
• Red-Green-Blue-White 4 colors in one Package
• High flux per LED
• Low-temp & lead-free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Typical Applications:
• Portable (flashlight, bicycle)
• Uplighters/Downlighters
• Decorative/Entertainment (stage light)
• Bollards/Security/Garden
• Indoor/Outdoor Commercial and Residential Architectural
• Automotive Ext (Stop-Tail-Turn, CHMSL, Width Lamp)
Data
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | W | 2.8 | 2.9 | 3.0 | V | IF=700mA |
| B/G | 2.8 | 2.9 | 3.0 | V | IF=700mA | ||
| R | 2.0 | 2.1 | 2.2 | V | IF=700mA | ||
| Luminous Flux | W | 240 | 250 | 260 | LM | IF=700mA | |
| B/G | 40/200 | 50/210 | 60/220 | LM | IF=700mA | ||
| R | 80 | 90 | 100 | LM | IF=700mA | ||
| Dominant Wavelength | Wld | B | 455 | 457.5 | 460 | NM | IF=700mA |
| G | 520 | 522.5 | 525 | NM | IF=700mA | ||
| R | 620 | 622.5 | 625 | NM | IF=700mA | ||
| Color Temperature | TC | W | 6000 | 7000 | 8000 | K | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 120 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | RGBW | 700 | mA |
