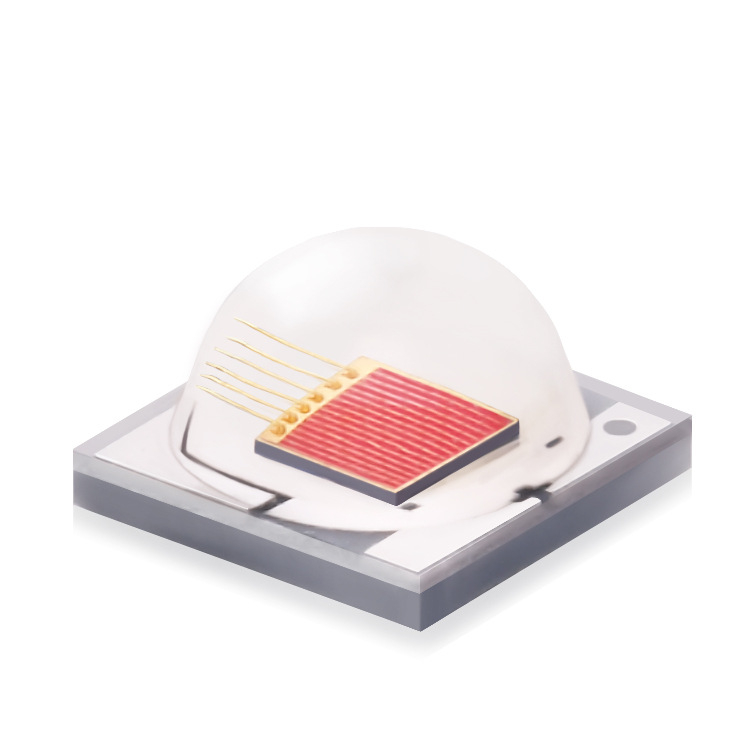

JH-5050R12K65-T8A-G
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Small size
• Lower thermal resistance, higher light efficiency
• Ceramic base with good heat conductivity to enlarge the lifespan
• Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
• SMD Components suitable for reflow-soldering
• Low expansion coefficient, high air tightness
Typical Applications:
• Reading lights(car, bus, aircraft)
• Portable(flashlight, bicycle)
• Uplighters/ Downlighters
• Decorative/ Entertainment
• Indoor/ Outdoor Lighting
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Red | 2.2 | 2.4 | 2.6 | V | IF=2000mA |
| Luminous Flux | Red | 190 | 205 | 220 | LM | IF=2000mA | |
| Wavelength | Wld | Red | 620 | 622.5 | 625 | NM | IF=2000mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 120 | Deg | IF=2000mA | |||
| Recommend Forward Current | IF(rec) | Red | 2000 | mA |
