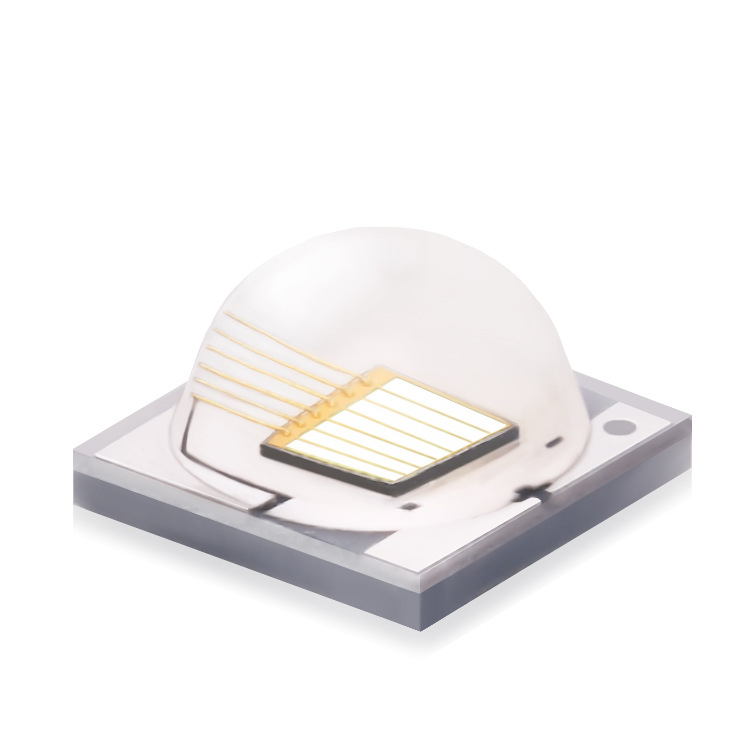

JH-5050G12K65-T8A-G
LEDGUHON
| Quantity: | |
|---|---|
Typical Applications:
• Reading lights (car, bus, aircraft)
• Portable (flashlight, bicycle)
• Uplighters/ Downlighters
• Decorative/ Entertainment
• Bollards/ Security/ Garden
• Indoor/ Outdoor Commercial and Residential Architecture
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Green | 3.0 | 3.2 | 3.4 | V | IF=2000mA |
| Luminous Flux | Green | 350 | 375 | 400 | LM | IF=2000mA | |
| Wavelength | Wld | Green | 525 | 527.5 | 530 | NM | IF=2000mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 120 | Deg | IF=2000mA | |||
| Recommend Forward Current | IF(rec) | Green | 2000 | mA |
Static Electricity:
• Static electricity or surge voltage damages the Power SMD. It is recommended that a wristband or an anti-electrostatic glove be used when handling the LEDs.
• A tip soldering iron is requested to be grounded. An ionizer should also be installed where risk of static.
• All devices, equipment, and machinery must be properly grounded (via 1MΩ). It is recommended that measures be taken against surge voltage to the equipment that mounts the Power SMD.
