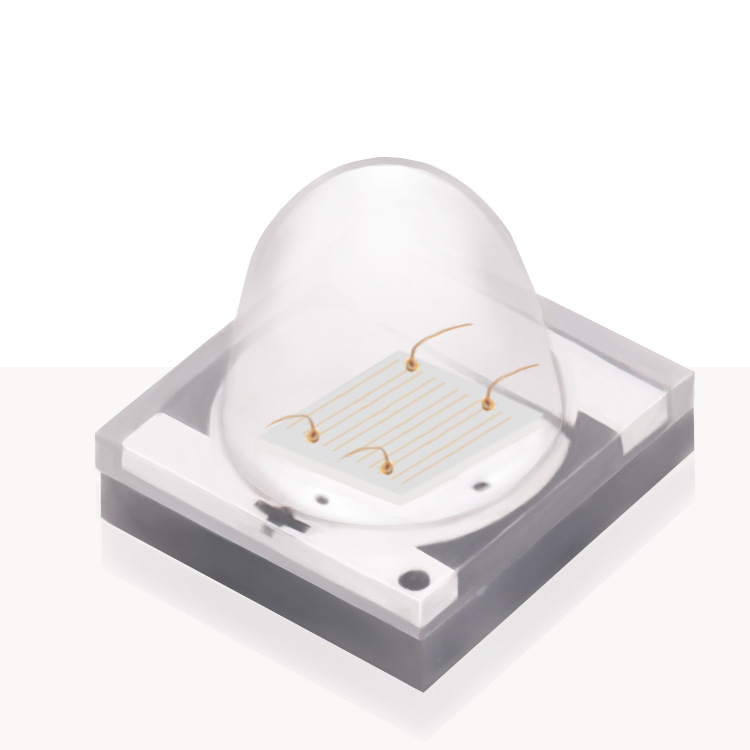

JH-3535B6G45-T8A
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Well-known chip material, EPILEDS
• 99.99% gold wire bonding
• High flux per LED
• Industry best moisture sensitivity
• Low-temp & lead-free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Typical Applications:
• LED Flashlight
• Automobile Illumination
• Architectural lighting
• Landscape lighting
• LED Street Light, LED High Bay Lights, LED Tunnel Lights
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Blue | 3.2 | 3.4 | 3.6 | V | IF=700mA |
| Luminous Flux | Blue | 40 | 50 | 60 | LM | IF=700mA | |
| Wavelength | Wld | Blue | 460 | 462.5 | 465 | NM | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 60 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | Blue | 700 | mA |
