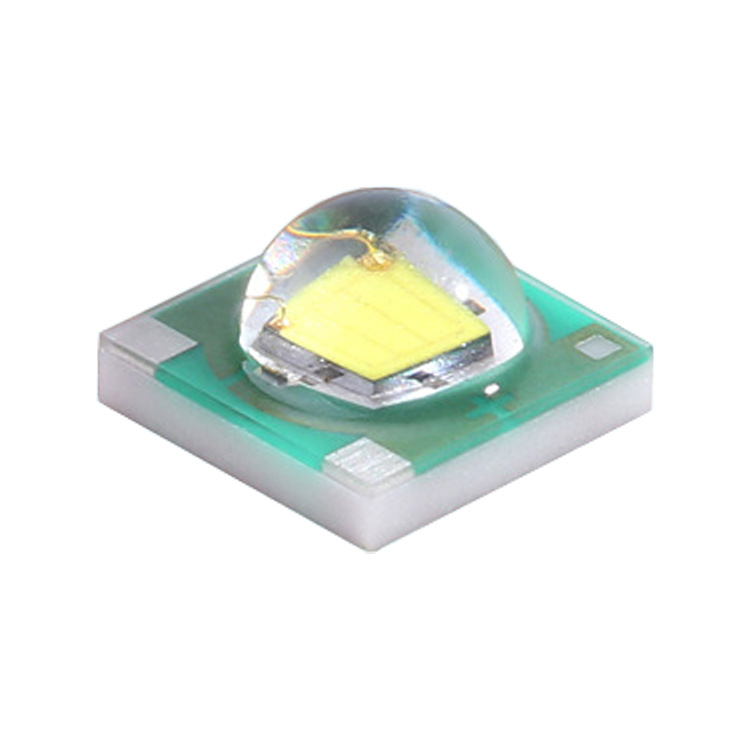

JH-3535W12Y25-T7A
LEDGUHON
| Quantity: | |
|---|---|
Typical Applications:
• Reading lights (car, bus, aircraft)
• Portable (flashlight, bicycle)
• Uplighters/ Downlighters
• Decorative/ Entertainment
• Bollards/ Security/ Garden
• Indoor/ Outdoor Commercial and Residential Architecture
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | White | 3.0 | 3.2 | 3.4 | V | IF=350mA |
| Luminous Flux | White | 80 | 90 | 100 | LM | IF=350mA | |
| Chromaticity Coordinates | X | 0.31 | IF=350mA | ||||
| Y | 0.32 | IF=350mA | |||||
| Color Temperature | TC | White | 6000 | 6500 | 7000 | K | IF=350mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 120 | Deg | IF=350mA | |||
| Recommend Forward Current | IF(rec) | White | 350 | mA |
Precautions in Handling & Use:
• For over-current protection, users are recommended to apply resistors connected in series with the LEDs to mitigate sudden changes in the forward current caused by the shift of forward voltage.
• This device should not be used in any type of fluid such as water, oil, organic solvent, etc. Some solvent-based cleaning agents may damage the silicone resins used in the device.
• When the device is in operation, the forward current should be carefully determined considering the maximum ambient temperature and corresponding junction temperature.
• LEDs must be stored in a clean environment. If the LEDs are to be stored for three months or more after being shipped, they should be packed in a nitrogen-filled container (the shelf life of sealed bags is 12 months at temperatures 0~40 ºC, 0~90 % RH).
