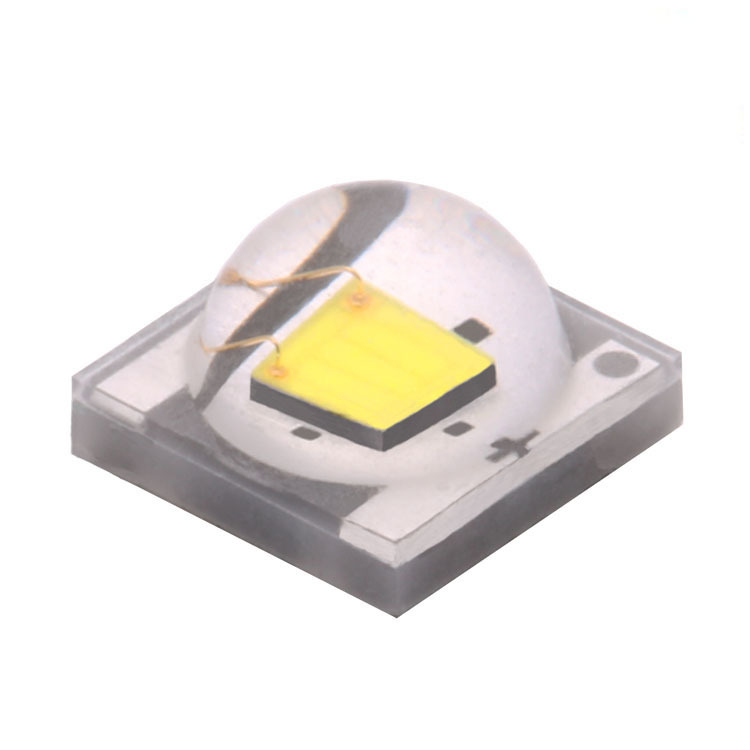

JH-3535W12S40-T8A
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Well-known chip material, Sanan
• 99.99% gold wire bonding
• High flux per LED
• Industry best moisture sensitivity
• Low-temp & lead-free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Typical Applications:
• Portable LED Flashlight
• Automobile illumination
• Architectural lighting
• Landscape lighting
• LED Street Light, LED High Bay Lights, LED Tunnel Lights
• Security application CCTV products
Data
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | W | 3.2 | 3.4 | 3.6 | V | IF=700mA |
| Luminous Flux | W | 250 | 260 | 270 | LM | IF=700mA | |
| Chromaticity Coordinates | X | 0.31 | IF=700mA | ||||
| Y | 0.33 | IF=700mA | |||||
| Color Temperature | TC | W | 6000 | 6500 | 7000 | K | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 120 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | W | 700 | mA |
