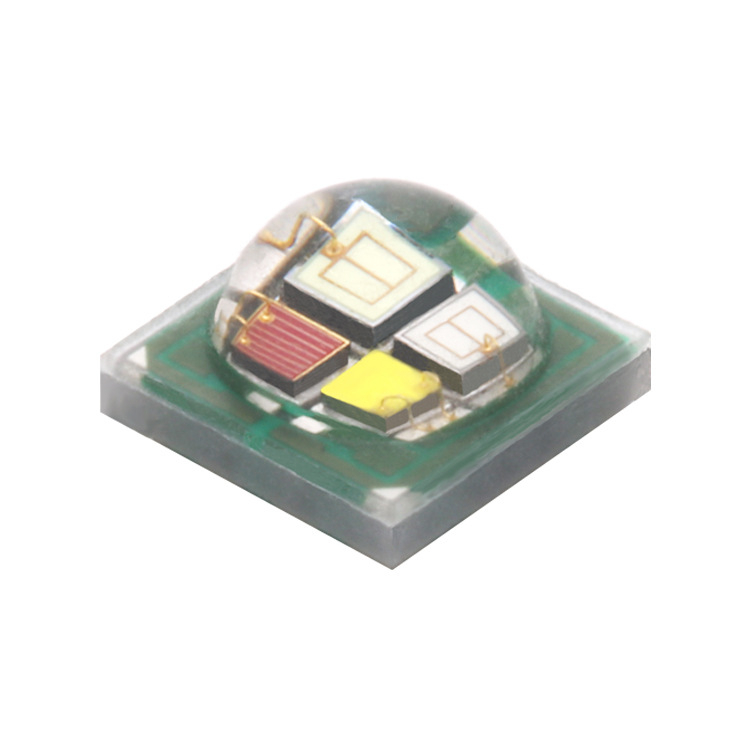

JH-3535RGBW12S26-T8A-457.5
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Well-known chip material, EPILEDS
• 99.99% gold wire bonding
• Full-color spot, well color consistency
• Red-Green-Blue-White 4 colors in one Package
• High flux per LED
• Low-temp & lead-free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Typical Applications:
• Outdoor Landscape illumination & Architectural lighting
• Entertainment lighting/Stage lighting
• Linear light, wall washer, flood light, underground and underwater light
• Matrix panel lights, Moving Heads panels, Par cans lights
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Red | 2.0 | 2.2 | 2.4 | V | IF=350mA |
| Green | 3.0 | 3.2 | 3.4 | V | IF=350mA | ||
| Blue & White | 3.0 | 3.2 | 3.4 | V | IF=350mA | ||
| Luminous Flux | Red | 50 | 55 | 60 | LM | IF=350mA | |
| Green | 90 | 100 | 110 | LM | IF=350mA | ||
| Blue | 20 | 25 | 30 | LM | IF=350mA | ||
| White | 110 | 120 | 130 | LM | IF=350mA | ||
| Wavelength | Wld | Red | 620 | 622.5 | 625 | NM | IF=350mA |
| Green | 522 | 525 | 527 | NM | IF=350mA | ||
| Blue | 455 | 457.5 | 460 | NM | IF=350mA | ||
| Color Temperature | TC | White | 5500 | 6000 | 6500 | K | IF=350mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 120 | Deg | IF=350mA | |||
| Recommend Forward Current | IF(rec) | RGBW | 350 | mA |
