The 1w 3w UV 365-370nm 395-420nm High Power Led use T2A copper frame to make
★Double gold wire make sure the led have good heat sink ability
★Wavelength 365-370nm,395-420nm,other wavelength,please ask us at first
★Can be used for Disinfection sterilization
★3W UV,Voltage is about 3.2-3.6V, current is 700mA; 1W UV,Voltage is about 3.0-3.6V, current is 350mA
★Can make angle 60deg and 140deg, other angle please ask at first

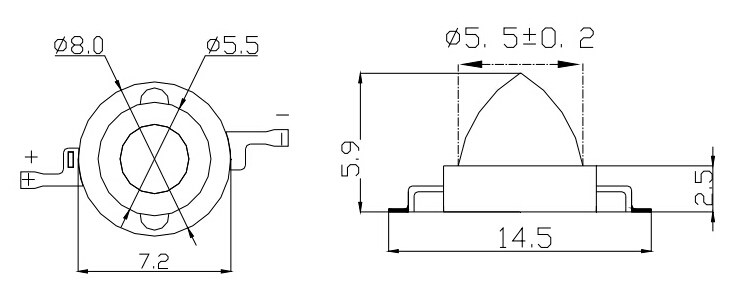

Product Size:
Product Feature:
★Adopt well-known brand chip package
★99.99% gold wire welding
★Copper frame and good heat sink
Data Sheet:
| Part No. | Power | Wavelength(nm) | Luminous(lm) | Voltage(V) | Current(mA) | Angle(deg) |
| JH-1V14G40-T2A-M | 1 | 395-400 | 10-20 | 3.0-3.6 | 350 | 140 |
| JH-3V14J45-T2A-M | 3 | 395-420 | 20-40 | 3.2-3.6 | 700 | 140 |
| JH-3V14G45-T2A-M | 3 | 395-420 | 20-40 | 3.2-3.6 | 700 | 140 |
| JH-3V14G45-T2A-M | 3 | 365-370 | 5-10 | 3.2-3.6 | 700 | 140 |
Product Use:
★Curing Light,Money Detector Light,Medical Light
★Decorative Light,Aquarium Light,etc
★When soldering the led by refelow soldering,please make sure 260℃/3s Max
★Moding type lens,when soldering the led,the lens will be softening,please don't press the led lens
★Usually 1000pcs/reel,after packed,please use in short time;if can't use all,the rest leds need put into pack bag,and when need use again,please bake 12hours at 60℃
★ROHS CE approved
★ISO 9001 approved
★UV led brightness is low,but the effect power is high,please don't look to the naked eye
★LED is the sensitive electronic element,please wear anti-static ring to operate
The 1w 3w UV 365-370nm 395-420nm High Power Led use T2A copper frame to make
★Double gold wire make sure the led have good heat sink ability
★Wavelength 365-370nm,395-420nm,other wavelength,please ask us at first
★Can be used for Disinfection sterilization
★3W UV,Voltage is about 3.2-3.6V, current is 700mA; 1W UV,Voltage is about 3.0-3.6V, current is 350mA
★Can make angle 60deg and 140deg, other angle please ask at first
Product Size:
Product Feature:
★Adopt well-known brand chip package
★99.99% gold wire welding
★Copper frame and good heat sink
Data Sheet:
| Part No. | Power | Wavelength(nm) | Luminous(lm) | Voltage(V) | Current(mA) | Angle(deg) |
| JH-1V14G40-T2A-M | 1 | 395-400 | 10-20 | 3.0-3.6 | 350 | 140 |
| JH-3V14J45-T2A-M | 3 | 395-420 | 20-40 | 3.2-3.6 | 700 | 140 |
| JH-3V14G45-T2A-M | 3 | 395-420 | 20-40 | 3.2-3.6 | 700 | 140 |
| JH-3V14G45-T2A-M | 3 | 365-370 | 5-10 | 3.2-3.6 | 700 | 140 |
Product Use:
★Curing Light,Money Detector Light,Medical Light
★Decorative Light,Aquarium Light,etc
★When soldering the led by refelow soldering,please make sure 260℃/3s Max
★Moding type lens,when soldering the led,the lens will be softening,please don't press the led lens
★Usually 1000pcs/reel,after packed,please use in short time;if can't use all,the rest leds need put into pack bag,and when need use again,please bake 12hours at 60℃
★ROHS CE approved
★ISO 9001 approved
★UV led brightness is low,but the effect power is high,please don't look to the naked eye
★LED is the sensitive electronic element,please wear anti-static ring to operate
