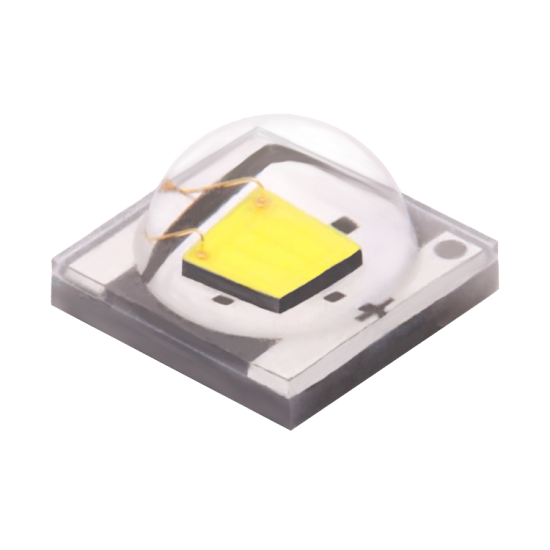

The 3535 Ceramic white SMD LED is a high-quality LED product with a ceramic substrate design for high thermal stability and reliability.
The luminous Angle of the product can be selected as 30 degrees, 60 degrees, 90 degrees and 120 degrees, according to different application scenarios. In addition, product color temperature CCT and demonstrative CRI,RA can be customized according to customer needs.
The usual color temperature is golden light 1700-1900K, warm white light 2800-3200K, white light 4000-8000K, and cold white 10,000K +,CRI is 70+, 80+, 90+, 95+. The product has a power of 1/3W and can provide stable optical output.
Mainly used in lighting field, such as indoor lamps, street lights, landscape lighting and so on. Because of its high brightness, high color temperature, long life and other characteristics, it is widely used in outdoor billboards, display screens, automotive lighting and other fields. In addition, it can also be used in medical equipment, industrial testing and other fields.

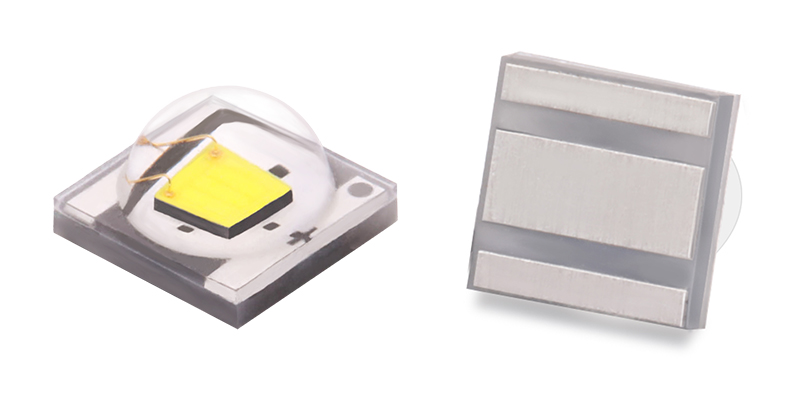

3535 120 degree/90 degree

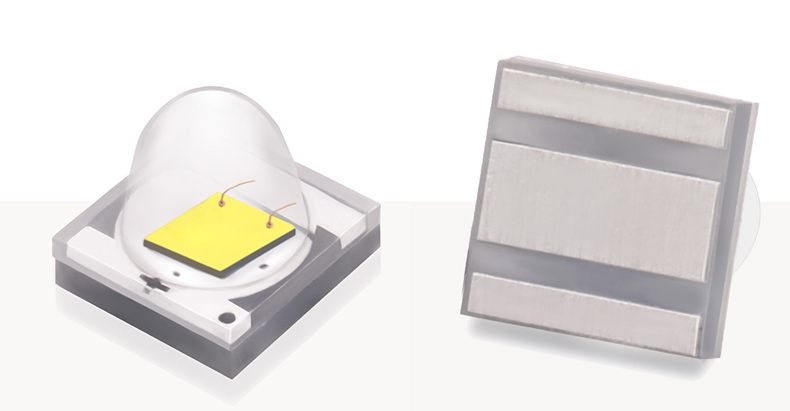

3535 60 degree/30 degree
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.1mm unless otherwise noted.
3. It can also be made to 3030/5050 specifications.
| Part No | Power(W) | CCT(K) | Luminous Flux(lm) | Voltage(V) | Current(mA) |
| JH-3535W12S55-T8A | 1-8 | 6000-8000 | 600-650 | 3.0-3.4 | 2000 |
| JH-3535W12S40-T8A | 1-3 | 6000-8000 | 220-260 | 3.0-3.4 | 700 |
| JH-3535W12P45-T7A | 1-3 | 4000-10000 | 220-260 | 3.0-3.4 | 700 |
| JH-3535W12P35-T7A | 1 | 4000-10000 | 120-160 | 3.0-3.4 | 350 |
| JH-3535WW12U42-T8A | 1-3 | 2800-3200 | 200-240 | 3.0-3.4 | 700 |
| JH-3535WW12P45-T7A | 1-3 | 1700-4000 | 200-240 | 3.0-3.4 | 700 |
| JH-3535WW12U27-T7A | 1 | 2800-3200 | 90-120 | 3.0-3.4 | 350 |
| JH-3535WW12P35-T7A | 1 | 1700-4000 | 90-120 | 3.0-3.4 | 350 |
2. If you need other power, you can customize it.
Product application
Car lights, street lamps, indicator lights, wall wash lights, flashlights, indoor lighting, commercial lighting, etc
