JH-3535W18GE55-T8A-WDZ
LEDGUHON
| Quantity: | |
|---|---|

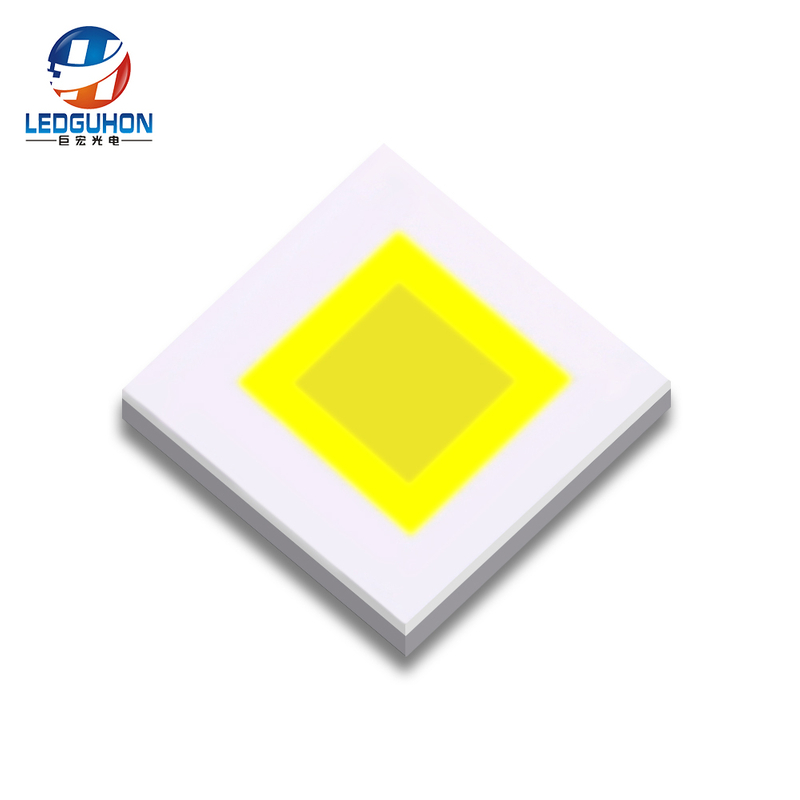

3535 3，4，6W high power white flashlight LED lamp bead.
| Part No. | emitting color | CCT(K) | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) |
| JH-3535W18GE55-T8A-WDZ | White | 7000-8000 | 3 | 3.0-3.4 | 1000 | 360-380 | 120 |
| JH-3535W18GE76-T8A-WDZ | White | 7000-8000 | 6 | 3.0-3.4 | 3000 | 900-1000 | 120 |
| JH-3535W18JC45-T7A-WDZ | White | 7000-8000 | 3 | 3.0-3.4 | 700 | 220-240 | 120 |
Note:
The color temperature can be customized according to the requirements of 3000/4000/6000/10000K Etc.
street lamp, project lamp , industrial lighting,commercial lighting
3535 3，4，6W high power white flashlight LED lamp bead.
| Part No. | emitting color | CCT(K) | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) |
| JH-3535W18GE55-T8A-WDZ | White | 7000-8000 | 3 | 3.0-3.4 | 1000 | 360-380 | 120 |
| JH-3535W18GE76-T8A-WDZ | White | 7000-8000 | 6 | 3.0-3.4 | 3000 | 900-1000 | 120 |
| JH-3535W18JC45-T7A-WDZ | White | 7000-8000 | 3 | 3.0-3.4 | 700 | 220-240 | 120 |
Note:
The color temperature can be customized according to the requirements of 3000/4000/6000/10000K Etc.
street lamp, project lamp , industrial lighting,commercial lighting
