5-120W positive white/warm white module LED is a high performance lighting source.
They are characterized by high brightness, high energy efficiency, long life and reliability.
This LED module uses advanced technology to provide improved light output and heat management while significantly reducing energy consumption and maintenance costs. Its dimming performance is also better, according to the need for flexible control of light brightness.
In addition, the LED modules are small and lightweight, making them easy to install and maintain.
They are also less susceptible to vibration, shock and temperature, and can adapt to a variety of harsh environments. Therefore, the 5-120W positive white/warm white module LED is a very practical lighting device that is widely used in a variety of indoor and outdoor places to bring people a better lighting experience.

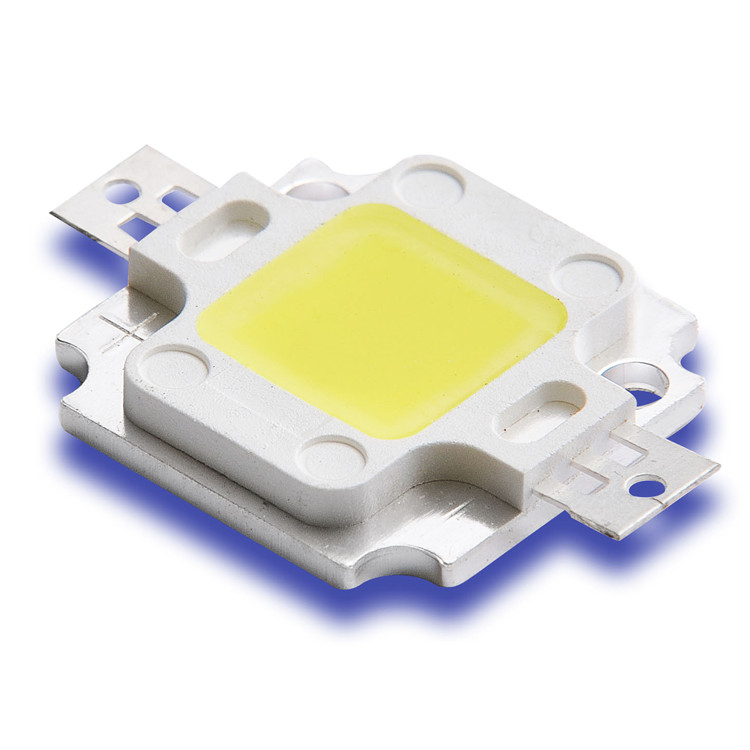

5-10W High power LED module

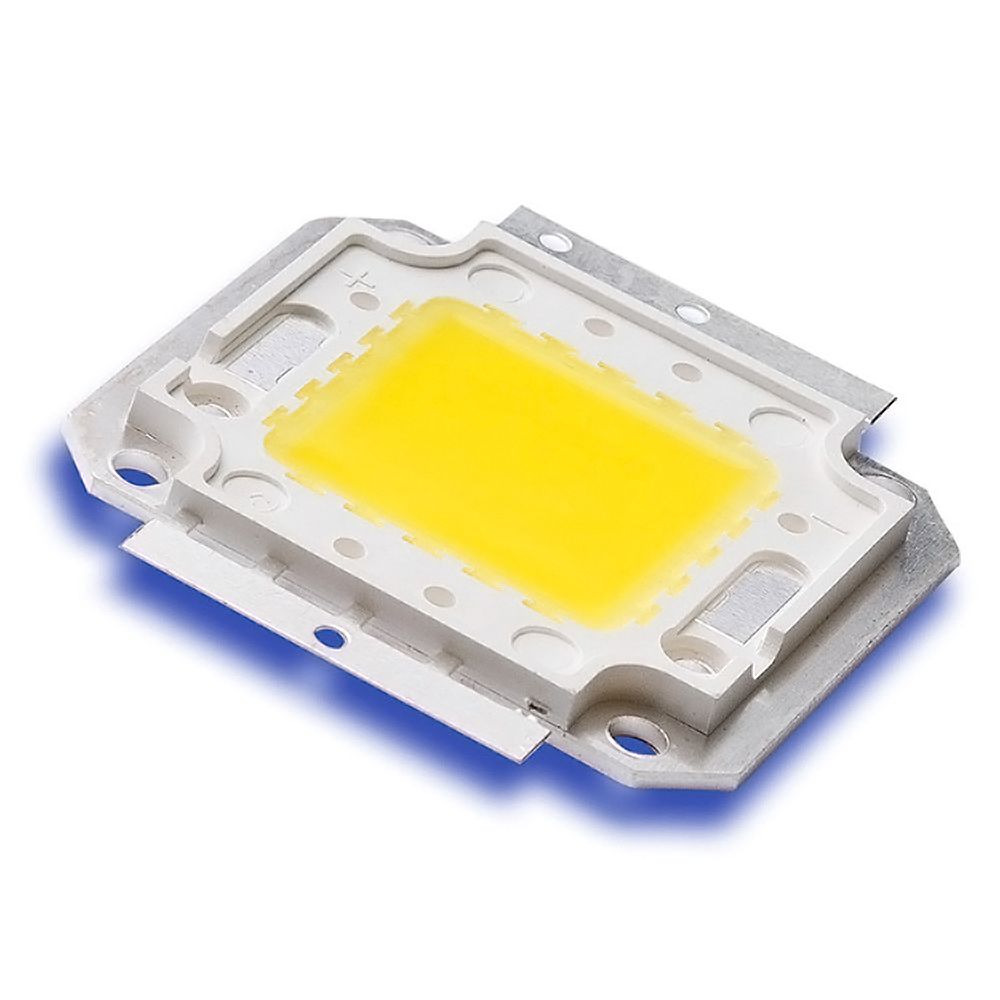

20-120W High power LED module
5-10W R1C dimension 5-10W R2C dimension

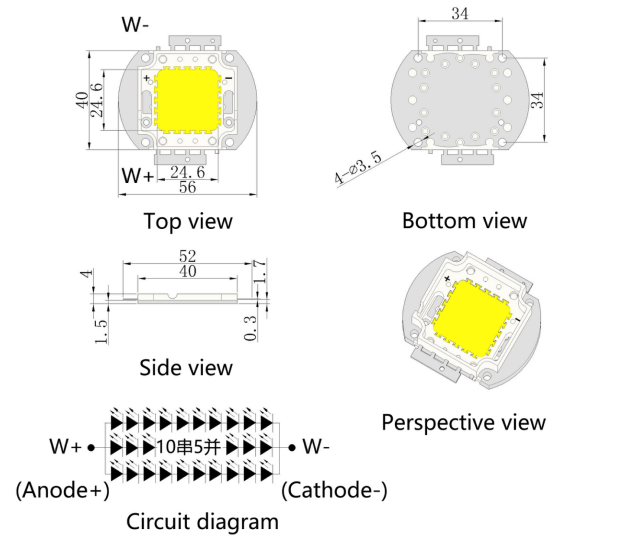

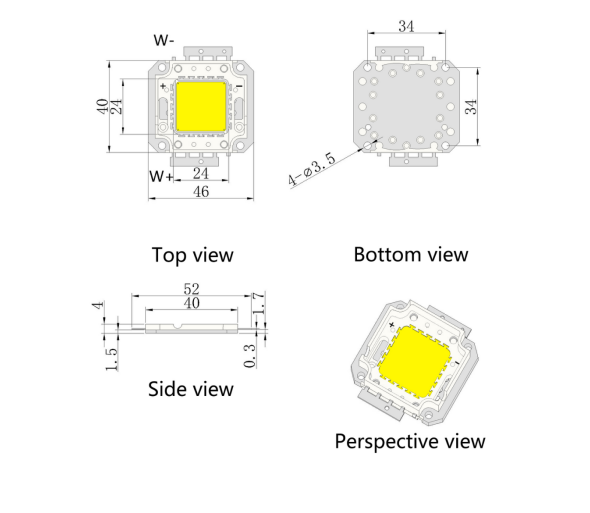

20-120W Z1C dimension 20-120W Z3C dimension
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.1mm unless otherwise noted.
3.If there is a specific size requirements, can contact customer service communication.
4.Support custom size specifications.
white
| Part No | Power(W) | CCT(K) | Luminous Flux(lm) | Voltage(V) | Current(mA) |
| JH-5W14P45-R1C | 5 | 4000-10000 | 550-650 | 6.0-6.4 | 700 |
| JH-10W14P45-R1C | 10 | 4000-10000 | 1000-1100 | 9.0-11 | 1050 |
| JH-20W14P45-Z1C | 20 | 4000-10000 | 2000-2200 | 30-32 | 700 |
| JH-30W14P45-Z1C | 30 | 4000-10000 | 3000-3500 | 30-32 | 1050 |
| JH-50W14P45-Z1C | 50 | 4000-10000 | 5000-5500 | 30-32 | 1750 |
| JH-100W14P45-Z1C | 100 | 4000-10000 | 10000-11000 | 30-32 | 3500 |
Warm White | Part No | Power(W) | CCT(K) | Luminous Flux(lm) | Voltage(V) | Current(mA) |
| JH-5WW14P45-R1C | 5 | 2600-4000 | 500-500 | 6.0-6.4 | 700 |
| JH-10WW14P45-R1C | 10 | 2600-4000 | 900-1000 | 9.0-11 | 1050 |
| JH-20WW14P45-Z1C | 20 | 2600-4000 | 1800-2000 | 30-32 | 700 |
| JH-30WW14P45-Z1C | 30 | 2600-4000 | 2800-3000 | 30-32 | 1050 |
| JH-50WW14P45-Z1C | 50 | 2600-4000 | 4500-5000 | 30-32 | 1750 |
| JH-100WW14P45-Z1C | 100 | 2600-4000 | 9000-10000 | 30-32 | 3500 |
Notes:
2. If you need other power, you can customize it.
3.If you need to make a variety of spectrum, color, please contact us.
4.If you have specific requirements for power or voltage and current, you can also contact customer service for communication and customization.
Product application
Car lights, street lamps, indicator lights, Spotlights, projection lights,wall wash lights, flashlights, indoor lighting, commercial lighting, etc
