| Quantity: | |
|---|---|
The 5050 ceramic LED is a high performance LED lamp bead, with high brightness, high color reduction and long life. The 5050 package size can realize the effect of positive white light and warm white light or two color temperature, so that it is widely used in lighting, display, advertising and other fields.
The LED lamp bead is made of ceramic substrate material, which has good heat dissipation performance and antistatic ability, and can improve the reliability and stability of LED lamp. In addition, it also has low power consumption, no mercury and other environmental advantages, in line with the development requirements of modern green energy saving.
5050 ceramic positive white warm white LED is generally used in a variety of lighting places, such as home, commercial, industrial and other places of indoor and outdoor lighting, as well as automotive lighting, billboards, stage lighting and other fields

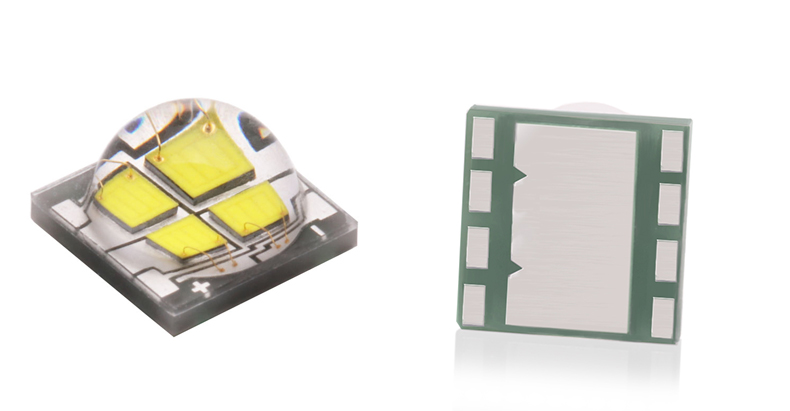

5050 120 degree/90 degree

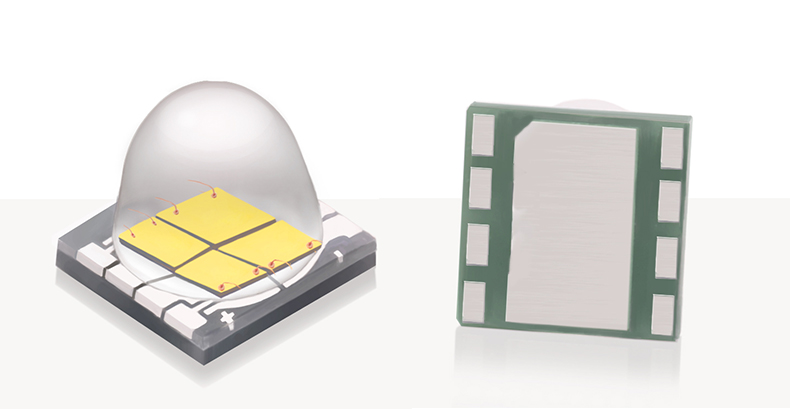

5050 60 degree/30 degree
5050 120degree dimension5050 60degree dimension
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.1mm unless otherwise noted.
3. It can also be made to 3030/3535 specifications.
| Part No | Power(W) | CCT(K) | Luminous Flux(lm) | Voltage(V) | Current(mA) |
| JH-5050W12S40-T8A | 1-12 | 6000-8000 | 220-260*4 | 3.0-3.4 | 700*4 |
| JH-5050W12U42-T8A | 1-12 | 5700-6300 | 200-240*4 | 3.0-3.4 | 700*4 |
| JH-5050W12S38-T8A | 1-12 | 4000-10000 | 200-240*4 | 3.0-3.4 | 700*4 |
| JH-5050W12U27-T8A | 1-4 | 5700-6300 | 100-130*4 | 3.0-3.4 | 350*4 |
| JH-5050WW12U42-T8A | 1-12 | 2800-3200 | 200-240*4 | 3.0-3.4 | 700*4 |
| JH-5050WW12S38-T8A | 1-12 | 1700-4000 | 200-240*4 | 3.0-3.4 | 700*4 |
| JH-5050WW12U27-T8A | 1-4 | 2800-3200 | 90-120*4 | 3.0-3.4 | 350*4 |
2. If you need other power, you can customize it.
Product application
Car lights, street lamps, indicator lights, wall wash lights, flashlights, indoor lighting, commercial lighting, etc
