LEDGUHON
| Quantity: | |
|---|---|
High power 2-pin white/warm white LED is a lighting product with high efficiency, energy saving and long life. It uses LED chip as light source, can provide different color temperature light line, including white light and warm white light, has different display of 70+, 80+, 90+.
In practical applications, high power 2-pin white/warm white leds are widely used in home lighting, commercial lighting and landscape lighting, and have the advantages of high efficiency, low power consumption and long life.
Compared with traditional incandescent lamps, high-power 2-pin white/warm white leds have a longer service life and can greatly reduce energy consumption and pollutant emissions, so they are very popular in the market.

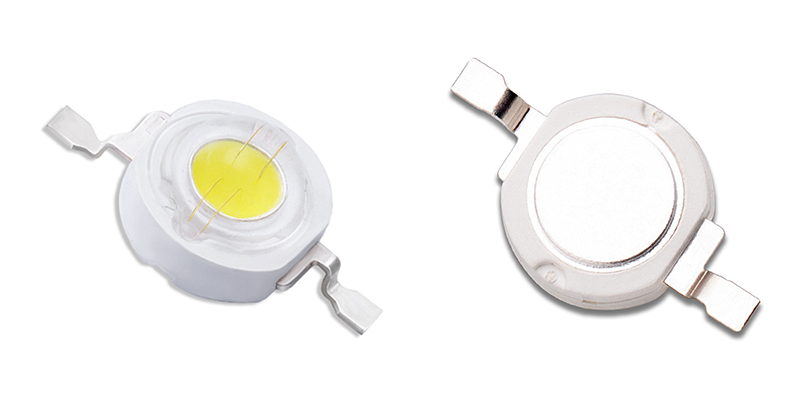

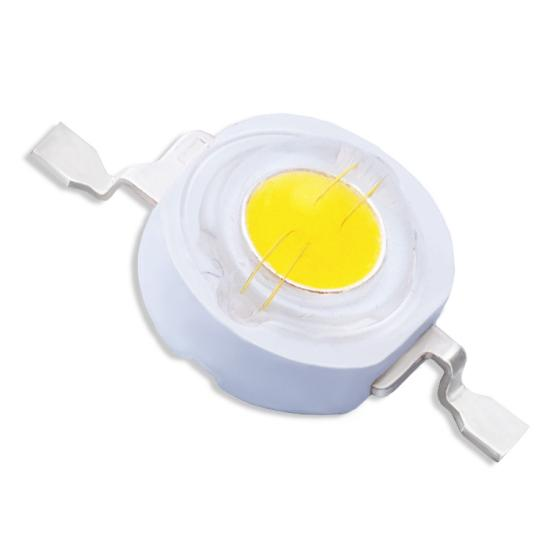

2PIN High power LED
2PIN High power dimension
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.1mm unless otherwise noted.
| Part No | Power(W) | CCT(K) | Luminous Flux(lm) | Voltage(V) | Current(mA) |
| JH-5W14P45-T2A | 1-5 | 4000-10000 | 550-650 | 3.0-3.4 | 1400 |
| JH-3W140P45-T4A | 1-3 | 4000-10000 | 260-300 | 3.0-3.4 | 700 |
| JH-1W140P35-T4A | 1 | 4000-10000 | 130-150 | 3.0-3.4 | 350 |
| JH-5WW14P45-T2A | 1-5 | 1700-4000 | 500-550 | 3.0-3.4 | 1400 |
| JH-3WW140P45-T4A | 1-3 | 1700-4000 | 220-260 | 3.0-3.4 | 700 |
| JH-1WW140P35-T4A | 1 | 1700-4000 | 100-130 | 3.0-3.4 | 350 |
2. If you need other power, you can customize it.
3.If you need to make a variety of spectrum, color, please contact us.
Product application
Car lights, street lamps, indicator lights, wall wash lights, flashlights, indoor lighting, commercial lighting, etc
