150W-500W power module COB light source is a kind of LED light source with high brightness, high color temperature and high stability. It consists of multiple chips integrated in a small area, which can provide higher light flux and more uniform light distribution, while having lower thermal resistance and excellent heat dissipation performance. It is suitable for outdoor lighting, industrial lighting, stage lighting and other fields, can replace the traditional halogen lamp, fluorescent lamp and other low efficiency, high energy sources, with energy saving and environmental protection, long life, no pollution and many other advantages.

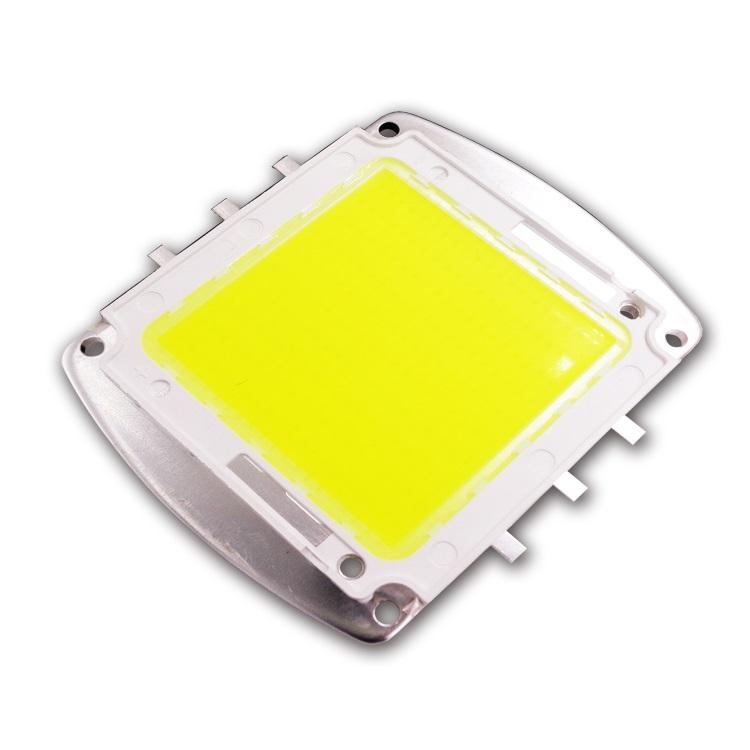

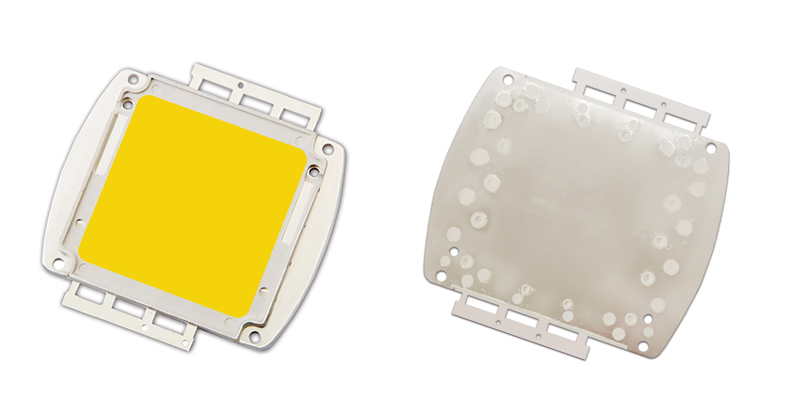

150-500W High power LED module cob
150-500W X1C dimension
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.1mm unless otherwise noted.
3.If there is a specific size requirements, can contact customer service communication.
4.Support custom size specifications.
white
| Part No | Power(W) | CCT(K) | Luminous Flux(lm) | Voltage(V) | Current(mA) |
| JH-150W14P45-X1C | 150 | 4000-10000 | 15000-18000 | 44-46 | 3500 |
| JH-200W14P45-X1C | 200 | 4000-10000 | 20000-24000 | 58-62 | 3500 |
| JH-300W14P45-X1C | 300 | 4000-10000 | 30000-36000 | 44-46 | 7000 |
| JH-400W14P45-X1C | 4000 | 4000-10000 | 40000-48000 | 58-62 | 7000 |
| JH-500W14P45-X1C | 500 | 4000-10000 | 50000-60000 | 74-76 | 7000 |
warm white
| Part No | Power(W) | CCT(K) | Luminous Flux(lm) | Voltage(V) | Current(mA) |
| JH-150WW14P45-X1C | 150 | 1700-4000 | 14000-16000 | 44-46 | 3500 |
| JH-200WW14P45-X1C | 200 | 1700-4000 | 18000-22000 | 58-62 | 3500 |
| JH-300WW14P45-X1C | 300 | 1700-4000 | 27000-33000 | 44-46 | 7000 |
| JH-400WW14P45-X1C | 400 | 1700-4000 | 36000-44000 | 58-62 | 7000 |
| JH-500WW14P45-X1C | 500 | 1700-4000 | 45000-55000 | 74-76 | 7000 |
Notes:
2. If you need other power, you can customize it.
3.If you need to make a variety of spectrum, color, please contact us.
4.If you have specific requirements for power or voltage and current, you can also contact customer service for communication and customization.
5.If you have specific requirements for voltage and current, you can also customize, such as 24V, 30V, 36V, 42V and so on
Product application
Car lights, street lamps, indicator lights, Spotlights, projection lights,wall wash lights, flashlights, indoor lighting, commercial lighting, etc
