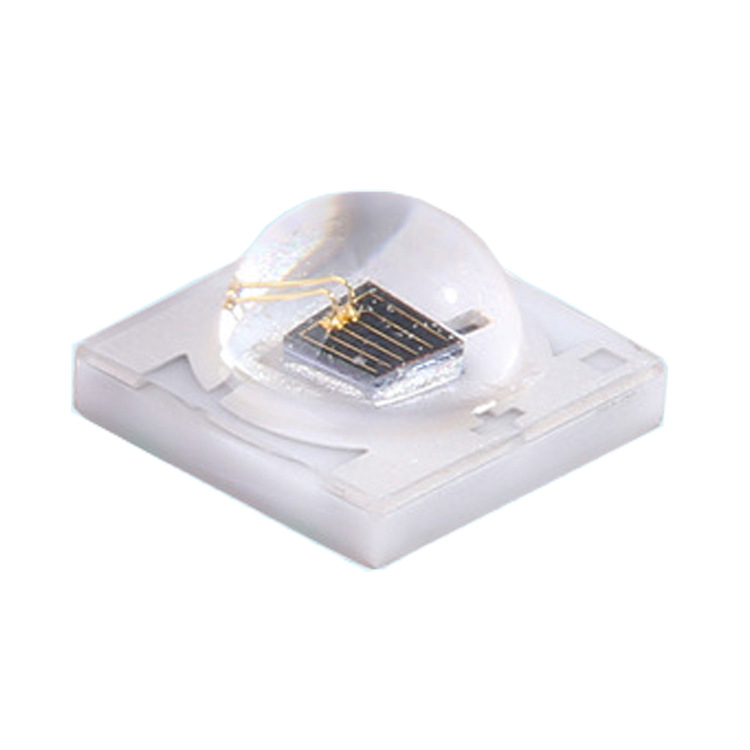

The 3535 IR LED, can make 1-3W high power.The wavelength can be 740nm,800nm,810nm,910nm,930nm,940nm or 1050nm.Other specail wavelength also can make,if need please ask us.
We use the 3535 ceramic frame to pack the led,make sure the led have good heatsink ability.And the gold wire lines,can update the led quality.
IR led chip have high wavelength,from 740-940nm,some kinds can see a little red color when the led working.Above 850nm,you can custom that kind which can't see any red color by eye.
Normal kinds make 120deg and 60deg,now can make 30deg and 90deg,if need,please ask us.
Product size:
Product Data:
| Part No. | Power(W) | Wavelength(nm) | Light Power(mW) | Voltage(V) | Current(mA) | Angle(deg) |
| JH-3535IR12G42 | 3 | 740 | 300-500 | 1.8-2.2 | 700 | 120 |
| JH-3535IR12E42 | 3 | 740 | 300-500 | 1.8-2.2 | 700 | 120 |
| JH-3535IR12G42 | 3 | 800-810 | 300-500 | 1.6-2.2 | 700 | 120 |
| JH-3535IR12T26 | 1 | 850 | 150-250 | 1.4-1.8 | 350 | 120 |
| JH-3535IR12G28 | 1 | 850 | 30-40 | 1.4-1.8 | 350 | 120 |
| JH-3535IR12G30 | 1 | 850 | 150-250 | 1.4-1.8 | 350 | 120 |
| JH-3535IR12G38 | 3 | 850 | 70-90 | 1.4-1.8 | 700 | 120 |
| JH-3535IR12T36 | 3 | 850 | 300-500 | 1.4-1.8 | 700 | 120 |
| JH-3535IR12G42 | 3 | 850 | 300-500 | 1.4-1.8 | 700 | 120 |
| JH-3535IR12G42 | 3 | 905-910 | 300-500 | 1.6-2.2 | 700 | 120 |
| JH-3535IR12G42 | 3 | 920-930 | 300-500 | 1.6-2.2 | 700 | 120 |
| JH-3535IR12G42 | 3 | 940 | 300-500 | 1.4-2.0 | 700 | 120 |
| JH-3535IR12E42 | 3 | 940 | 300-500 | 1.4-2.0 | 700 | 120 |
| JH-3535IR12E28 | 1 | 940 | 100-200 | 1.4-1.8 | 350 | 120 |
| JH-3535IR12G30 | 1 | 940 | 100-200 | 1.4-1.8 | 350 | 120 |
| JH-3535IR12T42-H940 | 3 | 940 | 150-250 | 1.4-1.8 | 350 | 120 |
| JH-3535IR12T42-S940 | 3 | 940 | 500-800 | 2.8-3.2 | 700 | 120 |
| JH-3535IR12G42 | 3 | 1050 | 300-500 | 1.2-1.6 | 700 | 120 |
The Typical Applications as below:
Surveillance lights, traffic camera lights, infrared sensors,VR/AR lights and so on.
